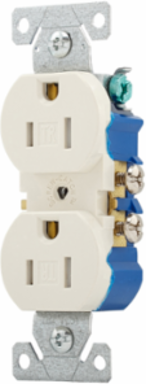

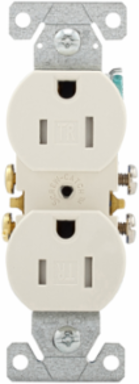

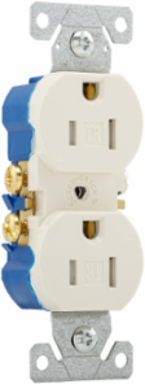

Cooper Wiring Devices TR270LA Duplex Receptacle, Tamper-Resistant, 15A, 125V, 5-15R, Light Almond
- MPN: TR270LA
- UPC: 032664666513
- PPN: COW-TR270LA
CAD
$1.61
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton residential grade duplex receptacle, #14-10 AWG, 15A, Commercial, Residential, Flush, 125V, Side and push, Light almond, Brass, Impact-resistant thermoplastic face, PVC body, 5-15R, Duplex, Screw, Thermoplastic, Core pack
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 15A
- Wiring Method
- Side and push
- Torque Rating
- 14 lbf-inch
- Number of Wires
- 3
- Connection Type
- Screw
- Face/Body Material
- Impact-resistant thermoplastic face, PVC body
- NEMA Configuration
- 5-15R
- Application
- Commercial/residential
- Special Features
- Tamper-resistant
Voltage Rating125V
Allowable Wire SizePush-In: #14 AWG Copper Only; Side: #10-14 AWG Copper or Copper Clad Aluminum
Number of PolesTwo-pole
Mounting MethodFlush
Contact MaterialBrass
ColorLight almond
Device GradeStandard grade
Receptacle TypeDuplex
