Leviton

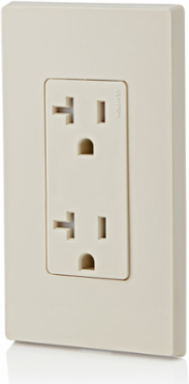

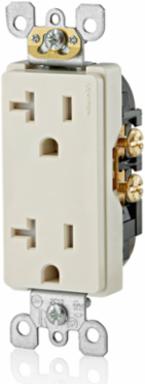

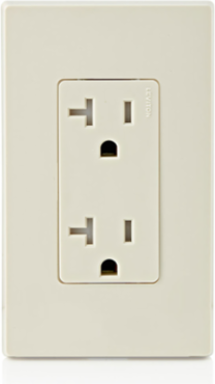

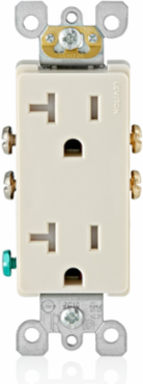

Leviton T5825-T 20 Amp Decora Tamper-Resistant Duplex Outlet/Receptacle, Grounding

20 Amp Decora Tamper-Resistant Duplex Outlet/Receptacle, Grounding
20 Amp Decora Tamper-Resistant Duplex Outlet/Receptacle, Grounding
20 Amp Decora Tamper-Resistant Duplex Outlet/Receptacle, Grounding
20 Amp Decora Tamper-Resistant Duplex Outlet/Receptacle, Grounding
  • MPN: T5825-T
  • UPC: 078477450536
  • PPN: LEV-T5825-T

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$7.54/ EA

Description

20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Self Grounding, Side Wired Only, NEC compliant – Light Almond

Features

  • Terminal screws accept #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
  • SAFE – Tamper-Resistant offers protection from electrical shocks
  • DURABLE – Impact-resistant thermoplastic nylon construction
  • EASY – Side wiring for easy installation
  • CONVENIENT – TR symbol on strap assures they meet the latest NEC requirements

Specifications

Standards & Certifications

CSA C22.2 No. 42
File 152105; Class 6233-01
UL 498
File E13399
NOMNOM Certified

Product Features

Amperage
20 A
Feature
Tamper-Resistant
Product Type
Decora
Terminal Accom.
Side wiring accepts #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
Torque Range
14 – 18 in.-lbs
Voltage
125 VAC
ColorLight Almond
NEMA5-20R
Ratings20A-125V
TerminationSide
TypeDuplex Receptacle
Warranty2-Year Limited

Specifications

Country of Origin
China
RoHS CompliantFalse
