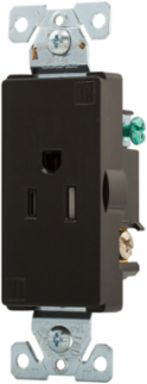

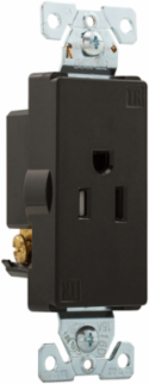

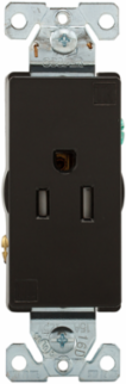

Cooper Wiring Devices TR6250BK-BOX Decorator Single Receptacle, Tamper-Resistant, 15A, 125V, NEMA 5-15R, Black
- MPN: TR6250BK-BOX
- UPC: 032664665356
- PPN: COW-TR6250BK-BOX
CAD
$8.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton heavy-duty industrial specification grade decorator single receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Back and side, Black, Brass, Impact-resistant thermoplastic face and back body, 5-15R, Single, Screw, PVC, ED Box
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 15A
- NEMA Configuration
- 5-15R
- Number of Wires
- 3
- Mounting Method
- Flush
- Connection Type
- Screw
- Contact Material
- Brass
- Color
- Black
- Style Type
- Decorator
- Application
- Commercial
Voltage Rating125V
Number of PolesTwo-pole
Torque Rating14 lbf-inch
Allowable Wire Size#10-14 Copper or Copper Clad Aluminum
Wiring MethodBack and side
Face/Body MaterialImpact-resistant thermoplastic face and back body
Receptacle TypeSingle
Design TypeStraight blade
Device GradeHeavy-duty industrial specification grade
