Schneider Electric NSYDPLA3 Step Slide Set for Thalassa Enclosures, Max Depth 250 mm, Adjustable 12.5 mm
Schneider Electric NSYDPLA3 Step Slide Set for Thalassa Enclosures, Max Depth 250 mm, Adjustable 12.5 mm
- MPN: NSYDPLA3
- PPN: SCH-NSYDPLA3
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$139.20/ EA
Description

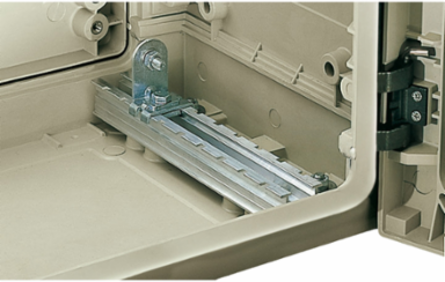

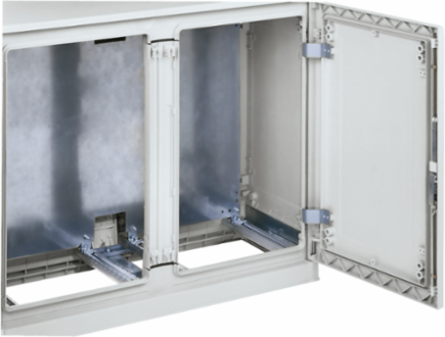

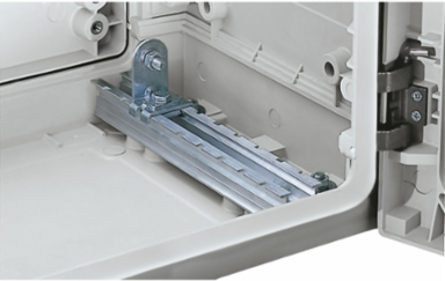

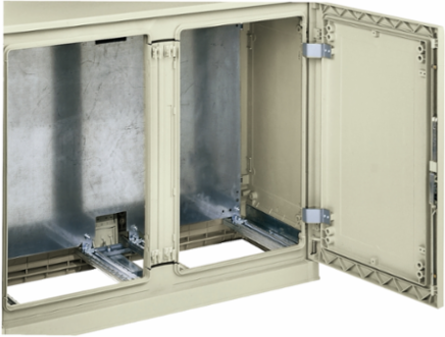

Enhance the versatility of your Thalassa PLA or PHD enclosures with this set of four step slides, designed specifically for adjustable mounting plates. Each slide allows for precise depth adjustments in increments of 12.5 mm, accommodating a maximum depth of 250 mm and a minimum of 35 mm, ensuring a tailored fit for various applications. Crafted from durable materials, including steel and aluminum, this mounting accessory is not only robust but also easy to install with M8 stud fixing elements. With an 18-month warranty and originating from Spain, this set is a reliable choice for those looking to optimize their enclosure setups.
Features
- Allow continuous depht adjustment of the mounting plate
- Direclty installed in the enclosures' bottom and top parts
- Mounting hardware
- Sliding rails and supports and fixing elements included
Specifications
General Attributes
- Product Or Component Type
- step slide
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition

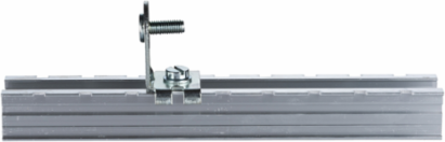

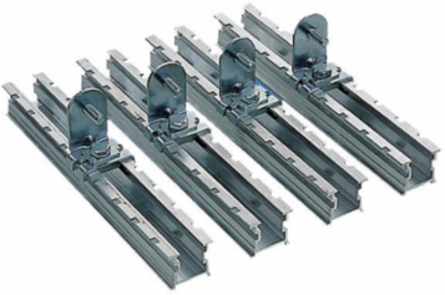

- 4 sliding rails, 4 sliding support with M8 stud, fixing elements
- Material
- sliding support steel, sliding rail aluminium
- Local Publishable Date
- 2025-12-09
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Fixing Mode
- by fixing element
- Mounting Location
- sides of enclosure
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Accessory Separate Part Category2
- mounting accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP1109021EN
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- D: 320 mm, - D: 320 mm, - D: 320 mm, - D: 320 mm
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Iso ThreadM8
Package Weight Lbs1.084 kg
Product Or Component Typestep slide
RangePanelSeT
Sustainable PackagingNo
Medium Descset of 4 step slides with brackets for adjustment of mount. plate in PLA D320mm
Product Kit IdentifierN
Adjustmentin depth of the plate or other accessories in steps of 12.5 mm
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1109021EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1109021EN
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
