Schneider Electric NSYDPLM350 Step Slides Set for PLM 108, Galvanised Steel, 106-306 mm Adjustment

MPN: NSYDPLM350
PPN: SCH-NSYDPLM350

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$87.71

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

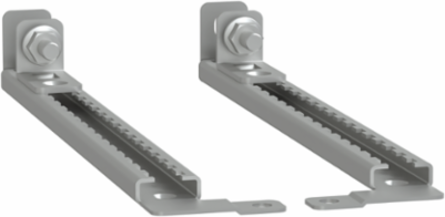

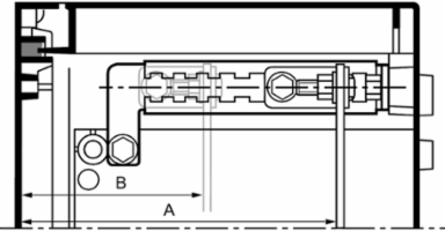

Set of 4 step slides with brackets for adjustment of mounting plate in PLM 108. Max depth adjustment is 306 mm, Min depth adjustment is 106 mm. Multi-purpose mounting accessory. Mounting on sides of enclosure. Adjustment is In depth of the plate or other accessories in steps of 12.5 mm. Galvanised Steel. 4 sliding rails and 4 sliding support incl.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Spain, United States

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	4 sliding rails, 4 sliding support, fixing elements
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Fixing Mode	by fixing element - enclosure boss
Mounting Location	sides of enclosure
Product Or Component Type	step slide
Range	PanelSeT
Sustainable Packaging	No
Accessory / Separate Part Category	mounting accessory
Package Weight(Lbs)	980.000 g
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Enclosure Nominal Dimensions	-, -
Local Publishable Date	2025-12-09
Stocking Flag	N
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Adjustment	in depth of the plate or other accessories in steps of 12.5 mm
Energy Efficiency Optimized	False
Material	galvanised steel
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	Yes
Pep Code	ENVPEP2202003EN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8302423065

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP2202003EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2202003EN

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
