Schneider Electric NSYDPLM300 set of 4 step slides with brackets for adjustment of m.plate in PLM 75and 86
Schneider Electric NSYDPLM300 set of 4 step slides with brackets for adjustment of m.plate in PLM 75and 86
- MPN: NSYDPLM300
- PPN: SCH-NSYDPLM300
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$80.82/ EA
Description

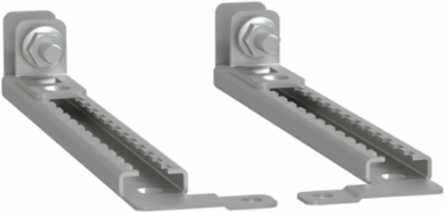

set of 4 step slides with brackets for adjustment of m.plate in PLM 75and 86
Specifications
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Specifications
- Range Compatibility
- Thalassa Thalassa PLM
- Accessory / Separate Part Category
- mounting accessory
- Product Or Component Type
- step slide
- Device Application
- multi-purpose
Materialgalvanised steel
Quantity Per Setset of 1
Device Composition4 sliding rails || 4 sliding support || fixing elements
Mounting Locationsides of enclosure
Complementary
- Adjustment

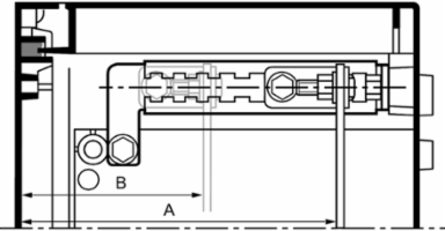

- in depth of the plate or other accessories in steps of 12.5 mm
- Fixing Mode
- by fixing element - enclosure boss
Depthmaximum depth adjustment 250 mm || minimun depth adjustment 100 mm
