Schneider Electric NSYSDCR300 Set of 4 Treated Steel Step Slides, 300 mm Depth, Galvanised
- MPN: NSYSDCR300
- PPN: SCH-NSYSDCR300
CAD
$67.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

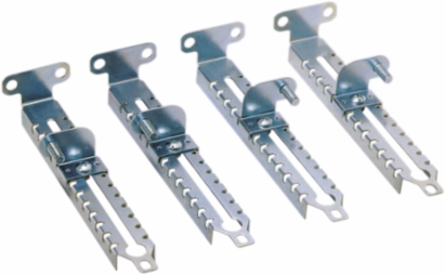

Set of step slides made of treated steel. D is300 mm. Compatible with Spacial CRN, S3D, S3X, S3CM. Mounting on sides of enclosure. Fixing by element, or on backstuds (welded). In depth of the plate in steps of 12.5 mm adjustment. Galvanised steel. Set of 4.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 4 sliding rails, 4 sliding support, fixing elements
- Fixing Mode
- by fixing element, on backstuds (welded in the enclosure)
- Local Publishable Date
- 2025-12-11
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Adjustment
- in depth of the plate or other accessories in steps of 12.5 mm
- Energy Efficiency Optimized
- False
- Mounting Location
- sides of enclosure
- Product Or Component Type
- step slide
- Range
- PanelSeT
- Sustainable Packaging
- No
- Accessory / Separate Part Category
- mounting accessory
- Package Weight(Lbs)
- 700.000 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Materialgalvanised steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Pep CodeENVPEP1001004EN
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- step slide
ETIM
- ETIM 8
- EC000482
ETIM 9EC000482
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
