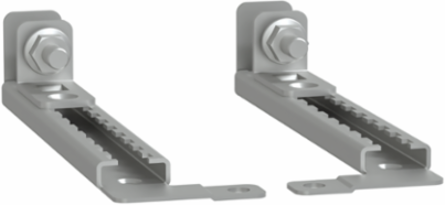

Schneider Electric NSYDPLM250 Step Slides Set with 4 Sliding Rails, Galvanised Steel, 100-200 mm Adjustment
- MPN: NSYDPLM250
- PPN: SCH-NSYDPLM250
CAD
$80.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

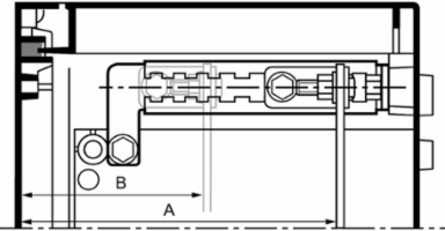

Set of 4 step slides with brackets for adjustment of mounting plate in PLM 64. Max depth adjustment is 200 mm, Min depth adjustment is 100 mm. Multi-purpose mounting accessory. Mounting on sides of enclosure. Adjustment is In depth of the plate or other accessories in steps of 12.5 mm. Galvanised Steel. 4 sliding rails and 4 sliding support incl.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 4 sliding rails, 4 sliding support, fixing elements
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Material
- galvanised steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Pep Code
- ENVPEP2202003EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2025-12-09
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentin depth of the plate or other accessories in steps of 12.5 mm
Fixing Modeby fixing element - enclosure boss
Mounting Locationsides of enclosure
Product Or Component Typestep slide
RangePanelSeT
Sustainable PackagingNo
Accessory / Separate Part Categorymounting accessory
Package Weight(Lbs)742.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2202003EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- step slide
ETIM
- ETIM 8
- EC000482
ETIM 9EC000482
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
