Square D

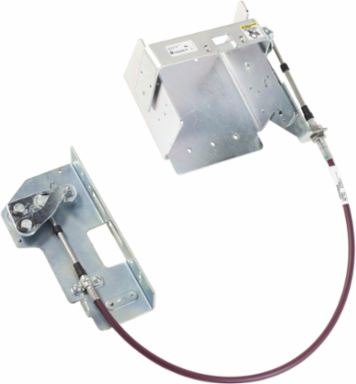

Square D 9422CSB10 PowerPacT B Disconnect Mechanism, 125A, 3 Pole, 120 Inch Cable

PowerPacT B Disconnect Mechanism, 125A, 3 Pole, 120 Inch Cable
  • MPN: 9422CSB10
  • UPC: 785901093534
  • PPN: SCH-9422CSB10

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$661.45/ EA

Description

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with PowerPact B circuit breakers. Circuit breakers is 3 pole with a frame size of 125 A. The mechanism comes with a 120 inch long cable. 9422A1 operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified

Specifications

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free
Yes
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Pvc FreeYes
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes

Complementary

Number Of Cables
1
Circuit Breaker Name
PowerPact B 2 || PowerPact B 3
Cable Length120 in

Specifications

Range Of Product
9422C
Product Or Component TypeSingle Cable Operating Mechanism
