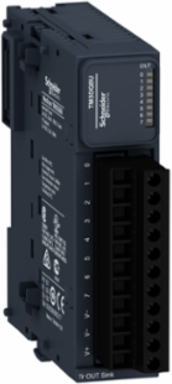

Schneider Electric TM3DQ8U Modicon TM3 Discrete Output Module, 8 Transistor Outputs, 24V DC
- MPN: TM3DQ8U
- PPN: SCH-TM3DQ8U
- UNSPSC: 32151705
CAD
$188.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Modicon TM3 Discrete Output Module, 8 Transistor Outputs, 24V DC
Features
- Expansion IO modules dedicated to Modicon M221, M241, M251 and M262 controllers
- Modularity and easness of installation
- Large choice of IO types to enhance the capabilities of Modicon M221, M241, M251 and M262 controllers
- Designed with a simple interlocking assembly mechanism
- Intuitive machine programming with EcoStruxure Machine Expert
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 84.6 mm |
| Weight | 990 g |
|---|
Complementary Attributes
| Maximum Cable Distance Between Devices | unshielded cable <30 m transistor output |
|---|---|
| Maximum Voltage Drop | <0.4 V<0.4 V |
| Maximum Leakage Current | 0.1 mA |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Mounting Support | top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Vibration Resistance | 3 gn 8.4-150 Hz) on panel mounting3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on panel mounting |
| Carbon Footprint Of The Distribution Phase A4 | 0.14743236520933076, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.017386681072515075 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 20 kg CO2 eq., 20.111394637285258 |
| Local Publishable Date | 2025-11-25 |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1402009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Awg Gauge | 0.2-2.5 mm² / 24 AWG...14 AWG with solid cable |
| Device Application | Industrial Application |
| Front Installation Possible | false |
| Local Signalling | 1 LED per channel (green) for output status |
| Network Type | DC |
| Power Supply Type | electronic powered by internal bus |
| Product Or Component Type | discrete output module |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon TM3 |
| Safety Reliability Data | MTBF = 170 years 40 °C |
| Software Version | v6.1 |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Total Lifecycle Carbon Footprint | 65 kg CO2 eq. |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Digital Outputs Configurable | false |
| Housing Color | grey |
| Digital Inputs Configurable | false |
| Time Delay At Signal Change | 0.45-0.45 ms |
| Data Source | extrapolated product |
| Width Nominal | 27.4 mm |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Appendant Operation Agent Ex Ia | false |
| Certified For Ul Hazardous Location Group A Acetylene | false |
| Certified For Ul Hazardous Location Group C Ethylene | false |
| Certified For Ul Hazardous Location Group E Metal Dusts | false |
| Certified For Ul Hazardous Location Group G Non Conductive Dust | false |
| Performance Level According To En Iso 13849 1 | none |
| Supporting Protocol For As Interface Safety At Work | false |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Typical Current Consumption | 5 mA 5 V DC0 mA 24 V DC, 20 mA 5 V DC, 10 mA 24 V DC |
| Certificate Agency | CE, cULus, UKCA, RCM, EAC, cULus HazLoc |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 1.5786351232506797, 2 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 43 kg CO2 eq., 42.6583784714421 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Bearing Track Assembly Possible | true |
| Electrical Connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs |
| Isolation Between Channels And Bus | 500 V AC |
| Marking | CE |
| Optical Interface Present | false |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | none |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | Yes |
| Shock Resistance | 15 gn 11 ms |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| Fieldbus Connection Over Separate Bus Coupler Possible | false |
| System Accessory | false |
| Short Circuit Protection Outputs Present | true |
| Database Version | 2023-02 |
| Height Nominal | 90 mm |
| Supporting Protocol For Ethernet/Ip | false |
| Wall Mounting/Direct Mounting Possible | false |
| Customs Code | 8538908180 |
| Appendant Operation Agent Ex Ib | false |
| Certified For Ul Hazardous Location Group B Hydrogen | false |
| Certified For Ul Hazardous Location Group D Propane | false |
| Certified For Ul Hazardous Location Group F Carbonaceous Dust | false |
| Io Link Master Present | false |
| Rack Assembly Possible | false |
| Supporting Protocol For Data Highway | false |
| Functional Unit Description | To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 3 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation) |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ambient Air Temperature For Storage | -25-70 °C-25-70 °C |
| Environmental Disclosure | ENVPEP1402009EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-01 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Relative Humidity | 10-95 % without condensation for operation, 10-95 % without condensation for storage |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 64.51322727825989 |
| Circularity Profile | ENVEOLI1402009EN |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1402009EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | discrete output module |
|---|
| Range Of Product | Modicon TM3 |
|---|
ETIM
| ETIM 8 | EC001599 |
|---|---|
| ETIM 10 | EC001599 |
| ETIM 9 | EC001599 |
|---|
Output Attributes
| Discrete Output Number | transistor, 8 |
|---|---|
| Discrete Output Current | 50 mA transistor output |
| Discrete Output Type | transistor |
| Discrete Output Voltage Type | AC/DC |
| Response Time On Output | 450 µs maximum (turn on), 450 µs maximum (turn off) |
|---|---|
| Discrete Output Logic | negative logic (sink) |
| Discrete Output Voltage | 24 V DCtransistor |
