Modicon TM3 Discrete Output Module, 16 Relay Outputs, 24V DC
Schneider Electric

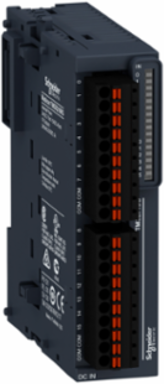

Schneider Electric TM3DQ16RG Modicon TM3 Discrete Output Module, 16 Relay Outputs, 24V DC

  • MPN: TM3DQ16RG
  • PPN: SCH-TM3DQ16RG
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $295.95

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Modicon TM3 Discrete Output Module, 16 Relay Outputs, 24V DC

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China, France, Taiwan, United States
    Depth84.6 mm

    Physical Attributes

    Housing Color
    grey

    Complementary Attributes

    Maximum Cable Distance Between Devices
    unshielded cable <30 m relay output
    Minimum Switching Current10 mA 5 V DC

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Mounting Support
    top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
    Vibration Resistance
    3 gn 8.4-150 Hz) on panel mounting3.5 mm 5-8.4 Hz) on DIN rail, 3 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on panel mounting
    Carbon Footprint Of The Distribution Phase [A4]
    0.058079416597615154, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.006849298604324121
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    68 kg CO2 eq., 68.30284971153483
    Local Publishable Date
    2026-03-26
    Stocking Flag
    N
    Device Type
    PLC System - PLC Component
    Traceability
    Yes
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1402009EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1901
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Industrial
    Awg Gauge
    0.14-1.5 mm² / AWG 26...AWG 16 with solid cable
    Device Application
    Industrial Application
    Front Installation Possible
    false
    Local Signalling
    1 LED per channel (green) for output status
    Mechanical Durability
    20000000 cycles
    Optical Interface Present
    false
    Product Availability
    Stock - Normally stocked in distribution facility
    Protective Treatment
    none
    Radio Standard Gprs
    false
    Radio Standard Umts
    false
    Returnability
    Yes
    Shock Resistance
    15 gn 11 ms
    Supporting Protocol For Asi
    false
    Supporting Protocol For Devicenet
    false
    Supporting Protocol For Ethercat
    false
    Supporting Protocol For Interbus
    false
    Supporting Protocol For Lon
    false
    Supporting Protocol For Other Bus Systems
    false
    Supporting Protocol For Profinet Cba
    false
    Supporting Protocol For Profisafe
    false
    Supporting Protocol For Sercos
    false
    Sustainable Packaging
    Yes
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Certified For Ul Hazardous Location Class Ii
    false
    Certified For Ul Hazardous Location Division 1
    false
    Dc Supply Voltage
    24-24 V
    Fieldbus Connection Over Separate Bus Coupler Possible
    false
    System Accessory
    false
    Short Circuit Protection Outputs Present
    false
    Pep Code
    ENVPEP1402009EN
    Pep Verification Date
    2024-06-01
    Psr Version
    PSR-0005-ed3-EN-2023 06 06
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Low voltage; 2018; China, CN
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Low voltage; 2018; China, CN
    Height Nominal
    90 mm
    Appendant Operation Agent (Ex Ia)
    false
    Certified For Ul Hazardous Location Group A (Acetylene)
    false
    Certified For Ul Hazardous Location Group C (Ethylene))
    false
    Certified For Ul Hazardous Location Group E (Metal Dusts)
    false
    Certified For Ul Hazardous Location Group G (Non Conductive Dust)
    false
    Performance Level According To En Iso 13849-1
    none
    Supporting Protocol For As-interface Safety At Work
    false
    Supporting Protocol For Ethernet/Ip
    false
    Wall Mounting/Direct Mounting Possible
    false
    Package Weight(Lbs)
    245.0 g
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Typical Current Consumption37 mA 5 V DC, 5 mA
    Certificate AgencycULus, CE, UKCA, RCM, EAC, CE, cULus, UKCA, RCM, EAC, cULus HazLoc
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6218865637048132, 0.6 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]17 kg CO2 eq., 16.804815761477194
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Bearing Track Assembly Possibletrue
    Electrical Connection10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for outputs
    Isolation Between Channels And Bus500 V AC
    MarkingCE
    Network TypeDC
    Power Supply Typeelectronic powered by internal bus
    Product Or Component Typediscrete output module
    Radio Standard Bluetoothfalse
    Radio Standard Gsmfalse
    Range Of ProductModicon TM3
    Safety Reliability DataMTBF = 130 years 40 °C
    Software Versionv6.1
    Supporting Protocol For Canfalse
    Supporting Protocol For Devicenet Safetyfalse
    Supporting Protocol For Foundation Fieldbusfalse
    Supporting Protocol For Knxfalse
    Supporting Protocol For Modbusfalse
    Supporting Protocol For Profibusfalse
    Supporting Protocol For Profinet Iofalse
    Supporting Protocol For Safetybus Pfalse
    Supporting Protocol For Suconetfalse
    Total Lifecycle Carbon Footprint86 kg CO2 eq.
    Certified For Ul Hazardous Location Class Ifalse
    Certified For Ul Hazardous Location Class Iiifalse
    Certified For Ul Hazardous Location Division 2false
    Digital Outputs Configurablefalse
    Housing Colorgrey
    Digital Inputs Configurablefalse
    Time Delay At Signal Change10-10 ms
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Taiwan, TW
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
    Recyclability Potential, In %3
    Width Nominal27.4 mm
    Appendant Operation Agent (Ex Ib)false
    Certified For Ul Hazardous Location Group B (Hydrogen)false
    Certified For Ul Hazardous Location Group D (Propane))false
    Certified For Ul Hazardous Location Group F (Carbonaceous Dust)false
    Io-link Master Presentfalse
    Rack-assembly Possiblefalse
    Supporting Protocol For Data-highwayfalse
    Supporting Protocol For Tcp/Ipfalse
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation)
    Take Back
    No
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Ambient Air Temperature For Storage
    -25-70 °C-25-70 °C
    Environmental Disclosure
    ENVPEP1402009EN
    Ip Degree Of Protection
    IP20
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2024-06-01
    Psr Version
    PSR-0005-ed3-EN-2023 06 06
    Relative Humidity10-95 % without condensation for operation, 10-95 % without condensation for storage
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint85.79448075191878
    Circularity ProfileENVEOLI1402009EN
    Eu Rohs DirectiveCompliant
    Operating Altitude0...6561.68 ft (0...2000 m)
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP1402009EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    discrete output module
    Range Of ProductModicon TM3

    ETIM

    ETIM 8
    EC001599
    ETIM 9EC001599

    Output Attributes

    Discrete Output Number
    16 relay normally open, 16
    Response Time On Output
    <= 10 ms maximum (turn on), <= 10 ms maximum (turn on), <= 5 ms maximum (turn off), <= 5 ms maximum (turn off)<= 10 ms maximum (turn on), <= 10 ms maximum (turn on), <= 5 ms maximum (turn off), <= 5 ms maximum (turn off)
    Discrete Output Logic
    positive or negative
    Discrete Output Voltage Type
    AC/DC
    Discrete Output Voltage240 V ACrelay outputs, 30 V DCrelay outputs
    Discrete Output Current2000 mA relay output
    Discrete Output Typerelay normally open
