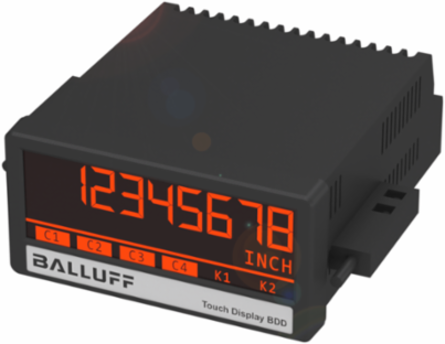

Balluff BDD 750-2D01-000-000-1-A Displays BDD 750-2D01-000-000-1-A
- MPN: BDD 750-2D01-000-000-1-A
- PPN: BAL-BAE010K
CAD
$688.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Displays from Balluff are ideal for control cabinet installation. Choose from between analog value displays, axis indicators and display modules with SSI interface or digital pulse interface. The various interfaces ensure optimal integration. Additionally, with a variety of setting possibilities you can use our displays with great flexibility. Depending on the model, parameter settings are made using function keys or on the front touch screen.
Documentation & Downloads
Specifications
Additional
- Function
- Single-axis counter
- Approval/Conformity
- CE, WEEE
- Input Frequency Max.
- 250 kHz
- Ambient Temperature
- -20 to 60 0C
- Dimensions
- 96 x 48 x 116 mm
- IP Rating (Front Housing)
- IP65
- Mounting
- Panel installation
- Keypad
- Touchscreen (resistive)
- Input Resistance
- > 5 kOhm
- MTTF (40 b0C)
- 107.2 a
Sensor Supply24 V, max 250 mA
Inputs, Number2
Operating Voltage18-30 VDC
MaterialABS
Weight200 g
IP Rating (Connector)IP20
Panel Cut-Out43 x 91 mm
Polarity Reversal ProtectionYes
Rated Input Current100 mA
InterfaceIncremental
