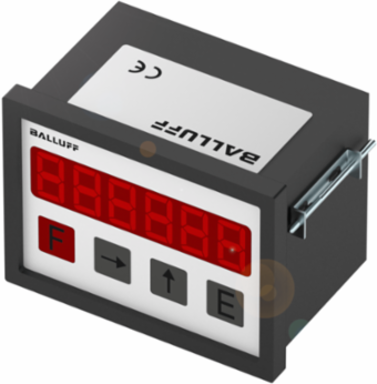

Balluff BDD 610-R3Q3-0-53-N-00 Displays BDD 610-R3Q3-0-53-N-00
- MPN: BDD 610-R3Q3-0-53-N-00
- PPN: BAL-BAE004J
CAD
$735.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Displays from Balluff are ideal for control cabinet installation. Choose from between analog value displays, axis indicators and display modules with SSI interface or digital pulse interface. The various interfaces ensure optimal integration. Additionally, with a variety of setting possibilities you can use our displays with great flexibility. Depending on the model, parameter settings are made using function keys or on the front touch screen.
Documentation & Downloads
Specifications
Additional
| Sensor Supply | 24 V, max 500 mA |
|---|---|
| Outputs, Number | 2 |
| Function | Single-axis counter |
| Setting | Count direction, Decimal point, Switching threshold output |
| Output Voltage | 24 VDC |
| Interface | Incremental |
| Dimension | 76 x 73 x 97 mm |
| Approval/Conformity | CE, WEEE |
| IP Rating Connector | IP20 |
| Storage Temperature | -20 to 65 C |
| Keypad | Membrane keypad |
| Digital Outputs | 2x PNP |
|---|---|
| Inputs, Number | 2 |
| Cycle Time Min | 10 s |
| Output Current Max | 600 mA |
| Rated Input Current | 80 mA |
| Ambient Temperature | 0-40 C |
| Panel Cut-out | 68 x 92 mm |
| IP Rating Front Housing | IP42 |
| Relative Humidity | 90% |
| Housing Material | Plastic |
