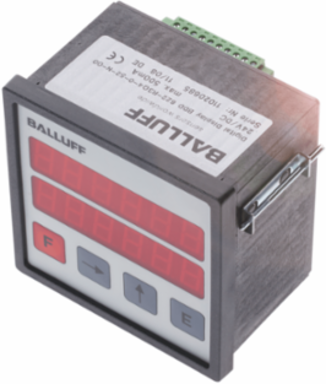

Balluff BDD 622-R3Q4-0-52-N-00 Displays BDD 622-R3Q4-0-52-N-00
- MPN: BDD 622-R3Q4-0-52-N-00
- PPN: BAL-BAE004M
CAD
$1767.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Displays from Balluff are ideal for control cabinet installation. Choose from between analog value displays, axis indicators and display modules with SSI interface or digital pulse interface. The various interfaces ensure optimal integration. Additionally, with a variety of setting possibilities you can use our displays with great flexibility. Depending on the model, parameter settings are made using function keys or on the front touch screen.
Documentation & Downloads
Specifications
Additional
| Ambient Temperature | 0-40 C |
|---|---|
| Inputs Number | 4 |
| Outputs Number | 2 |
| Cycle Time | 500 ns |
| Output Voltage | 24 VDC |
| Dimension | 77 x 96 x 96 mm |
| Interface | Incremental |
| IP Rating Connector | IP20 |
| Relative Humidity | 90% |
| Material | Plastic |
| Sensor Supply | 5 V/24 V, max 150 mA per channel |
|---|---|
| Digital Outputs | 2x PNP |
| Function | Dual axis counter |
| Output Current Max | 670 mA |
| Rated Input Current | 170 mA |
| Panel Cut-out | 92 x 92 mm |
| Approval/Conformity | CE, WEEE |
| IP Rating Front Housing | IP42 |
| Storage Temperature | -20 to 65 C |
