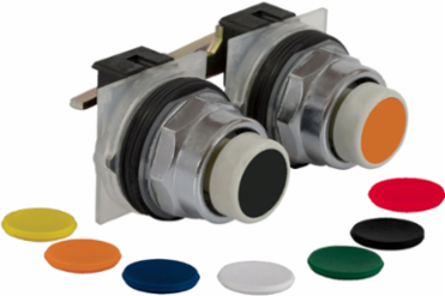

Schneider Electric 9001KR11UH1H1 Double-headed push-button, Harmony 9001K, metal, flush, 7 colours choice, 30mm, stay put, with mechanical interlocking, 2 C/O

Double-headed push-button, Harmony 9001K, metal, flush, 7 colours choice, 30mm, stay put, with mechanical interlocking, 2 C/O
  • MPN: 9001KR11UH1H1
  • UPC: 785901033295
  • PPN: SCH-9001KR11UH1H1

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Looking to buy a large quantity?

    To view product inventory

    CAD$315.34/ EA

    Description

    This Harmony 9001K, illuminated dual mechanically interlocked dual push buttons has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, has 1 x NO + 1 x NC contact and uses screw-clamp terminals. This illuminated dual mechanically interlocked push buttons enables machine builders to easily add required control and signalling functionality on their machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It offers 7 colors cap for customisation where the schematic is clearly distinguishable. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

    Specifications

    Environment

    Product Certifications
    NEMA || UL 508
    Ambient Air Temperature For Storage
    -40-70 °C
    Nema Degree Of Protection
    NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
    Shock Resistance
    50 gn IEC 60068-2-27
    Protective Treatment
    TC
    Ambient Air Temperature For Operation-25-70 °C
    StandardsJIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-1
    Electrical Shock Protection Classclass II IEC 61140
    Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
    Ip Degree Of ProtectionIP66 IEC 60529

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP121006EN
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Weee
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    Complementary

    [Icm] Rated Short-Circuit Making Capacity
    12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    [Ui] Rated Insulation Voltage
    250 V 3)EN/IEC 60947-1
    Bezel Material
    metal
    Connections - Terminals
    screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
    Mechanical Durability
    5000000 cycles
    Mounting Diameter
    30 mm
    Operating Position
    any position
    Rated Breaking Capacity
    3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    Cap/Operator Or Lens Colour
    7 colours choice
    Shape Of Screw Head
    cross slotted
    [Uimp] Rated Impulse Withstand Voltage
    2.5 kV EN/IEC 60947-1
    Contacts Type And Composition2 C/O
    Short-Circuit Protection10 A cartridge fuse EN/IEC 60947-5-1
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
    Contacts Materialsilver alloy contacts
    Positive Openingwithout
    Type Of Operatorstay put
    [Ith] Conventional Free Air Thermal Current10 A
    Shape Of Signaling Unit Headoctagonal
    Tightening Torque0.8-0.8 N.m IEC 60947-1
    Net Weight0.54 kg
    Device Presentationcomplete product

    Specifications

    Range Of Product
    Harmony 9001K
    Type Of Operator
    2 stay put
    Device Short Name
    9001K
    Operator Profileflush 7 colours choice unmarked
    Product Or Component Typedouble-headed push-button
