Schneider Electric ZB4BZ103 Harmony XB4 Metal Single Contact Block 2 NO, IP20, -40 to 70 C
- MPN: ZB4BZ103
- PPN: SCH-ZB4BZ103
CAD
$40.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. 1 million cycle high endurance provides less maintenance and damage in your installation. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features

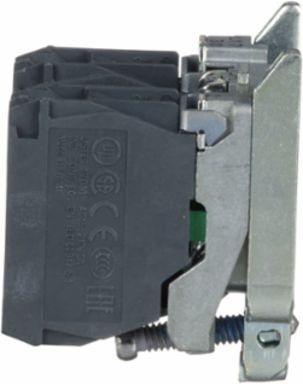

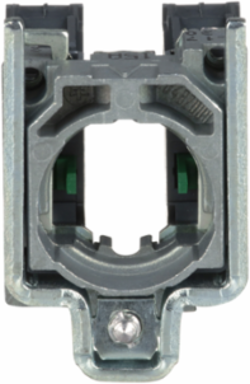

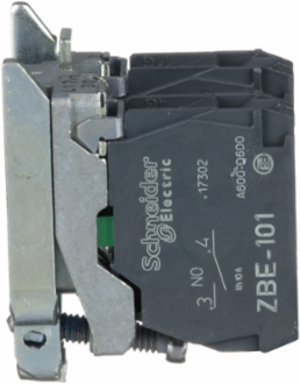

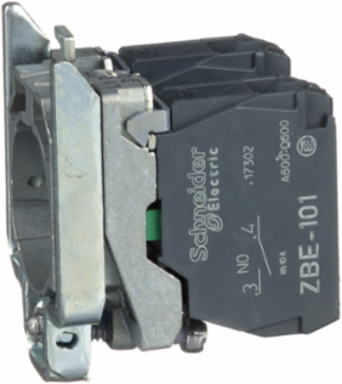

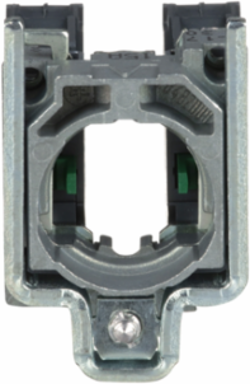

- The ZB4BZ103 is a complete "Contact Block" assembly from the Schneider Electric Harmony XB4 metal range. It consists of the ZB4BZ009 mounting collar and two ZBE101 Normally Open (NO) contact blocks. This unit serves as the electrical "engine" that converts the mechanical action of a push-button or selector switch into two simultaneous electrical signals.

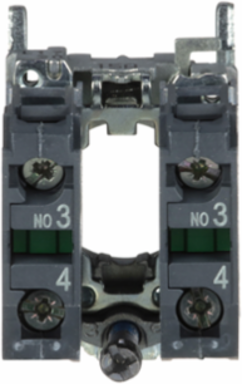

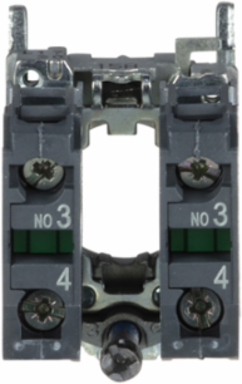

- This assembly features 2 NO (Normally Open) contacts. In their resting state, the circuits are open (no power flows). When you press the button or turn the switch, both contacts close at the same time. This is commonly used for dual-circuit control, such as starting a motor while simultaneously turning on an "In Operation" indicator light.
- As part of the modular 22mm Harmony XB4 system, this metal mounting base is designed to snap onto any Harmony ZB4 operator head. It is ideal for: Non-illuminated push-buttons (like the ZB4BA3) , 2-position selector switches (like the ZB4BD2) , Key switches (like the ZB4BG2)
- Constructed with a high-strength chromium-plated metal mounting collar and silver alloy contacts, the ZB4BZ103 is designed for millions of operations. It is highly resistant to industrial vibration and shock. The screw clamp terminals are engineered to prevent loosening over time, ensuring a gas-tight, reliable connection even in demanding environments.
- The modular "snap-fit" design allows the block to be attached to the operator head in seconds without tools. It is UL Listed, CSA Certified, and CE marked. When properly installed with a compatible Harmony head, it maintains the NEMA 4X / IP66 integrity of your control panel, making it suitable for outdoor use or high-pressure washdown areas.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
Physical Attributes

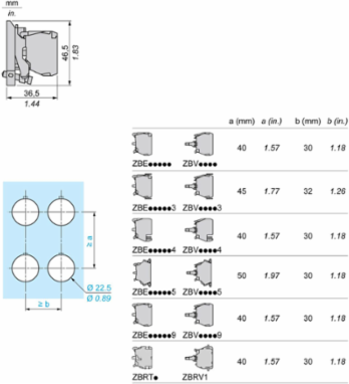

| Cad Overall Depth | 37 mm |
|---|---|
| Cad Overall Width | 30 mm |
| Cad Overall Height | 47 mm |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Contacts Usage | standard contacts, standard contacts |
| Device Composition | fixing collar, body, fixing collar |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
| Contacts Composition | 2 NO |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0081078055, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0124353025, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.0521873239 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308035EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 16 % |
| Compatibility Code | ZB4 |
| Contact Operation | slow-break |
| Contacts Type And Composition | 2 NO |
| Fixing Collar Material | zamak |
| Mechanical Durability | 5000000 cycles |
| Operating Travel | 2.6 mm NO changing electrical state)4.3 mm total travel) |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TH |
| Returnability | Yes |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 0.6 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2308035EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 84 |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509035 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Customizable | 0, no |
| Electrical Durability | 10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C10000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 10000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 10000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Certificate Agency | BV, UL, CSA, DNV, LROS (Lloyds register of shipping) |
| Terminals Description Iso N°1 | (13-14)NO, (13-14)NO |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.078423013 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.4 kg CO2 eq., 0.4394571767 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 23 % |
| Contact Block Type | single |
| Contacts Material | silver alloy (Ag/Ni) |
| Device Short Name | ZB4 |
| Head Type | standard |
| Operating Torque | 0.05 N.m NO changing electrical state |
| Positive Opening | without |
| Product Or Component Type | complete body/contact assembly |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Software Version | v5.9.4 |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Connections Terminals 8 Connections Terminals | screw clamp terminals |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1. |
| Functional-unit Unit | Unit |
