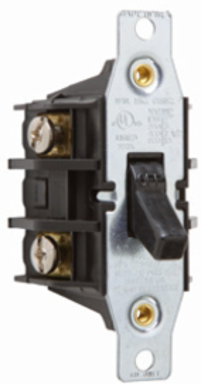

Pass & Seymour 7802MD Double Pole Manual Motor Controller 30 Amp, 600 Volt, Glass-Reinforced Thermoplastic
- MPN: 7802MD
- UPC: 785007267655
- PPN: P-S-7802MD
CAD
$104.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Double pole, Single Phase AC Manual Motor Controller 30 amp, 600 volts (max), Suitable as Motor Disconnect
Features
- High Horsepower rating of 20HP
- Gull-wing shaped brass terminal pressure clamps
- Constructed of glass-reinforced thermoplastic
- UL508 and cULus Listing of individual device and assembled device within enclosure
- Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
- External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.753 in
- Color
- Black
- Width
- 1.825 in
- Material
- Thermoplastic
- Load Type
- CFL
- Amperage
- 30.0 A
- Voltage
- 600.0 V
- Number of Gangs
- 1
- Switch Type
- Toggle
- Standard
- CSA Listed
- Indoor/Outdoor
- Indoor
- Type
- Tamper-Resistant
- Mounting Type
- Wall Box
- Type
- Manual Controller
- Throw Type
- Double Throw
- Requires Neutral Wire
- Yes
- Number of Poles
- Double Pole
- Application Sector
- Industrial
- Connection Location
- Back and Side
- Wire Connection Type
- Screw Terminals
- Terminal Accommodation
- #14 AWG - #10 AWG
- Special Features
- Double pole, Single Phase AC Manual Motor Controller, suitable as Motor Disconnect
Height3.67 in
FinishMatte
Country of OriginMexico
Product LinePass & Seymour
Load TypeLED
Load TypeXenon
Load TypeHalogen
StandardUL Listed
Load TypeUniversal
Supply Voltage120.0
Load TypeFluorescent
Load TypeIncandescent
Number of Switches1.0
Wall Plate IncludedNo
Operating Cycles50000.0
Load Rating30 A @ 600 VAC
Application SectorCommercial
Environmental ConditionsUL94 V2
Horsepower Rating20 HP @ 600 VAC
Warranty Type1-Year Limited Warranty
FeaturesHeavy Duty Zinc Plated Steel Strap
