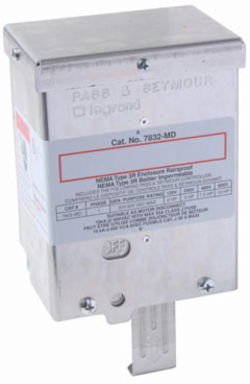

Pass & Seymour 7832MD Double Pole Manual Motor Controller - 10KA @ 600VAC, 30A Max, 20HP
- MPN: 7832MD
- UPC: 785007267679
- PPN: P-S-7832MD
CAD
$148.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Double Pole Manual Motor Controller - 10KA @ 600VAC, 30A Max, 20HP
Features
- High Horsepower rating of 20HP
- Gull-wing shaped brass terminal pressure clamps
- Constructed of glass-reinforced thermoplastic
- UL508 and cULus Listing of individual device and assembled device within enclosure
- Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
- External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.8 in
- Color
- Aluminum
- Finish
- Matte
- Material
- Thermoplastic
- Load Type
- CFL
- Amperage
- 30.0 A
- Voltage
- 600.0 V
- Number of Gangs
- 1
- Switch Type
- Toggle
- Standard
- CSA Listed
- Load Type
- Fluorescent
- Mounting Type
- Wall Box
- Type
- Manual Controller
- Throw Type
- Single Throw
- Requires Neutral Wire
- Yes
- Number of Poles
- Double Pole
- Application Sector
- Industrial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Features
- Heavy Duty Zinc Plated Steel Strap
Height5.75 in
Width4.5 in
Country of OriginUnited States
Product LinePass & Seymour
Load TypeLED
Load TypeXenon
Load TypeHalogen
StandardUL Listed
Load TypeUniversal
Indoor/OutdoorIndoor
Load TypeIncandescent
Number of Switches1.0
Wall Plate IncludedNo
Operating Cycles50000.0
Load Rating30 A @ 600 VAC
Application SectorCommercial
Environmental ConditionsUL94 V2
Wire Connection TypeScrew Terminals
Terminal Accommodation#14 AWG - #10 AWG
Special FeaturesDouble Pole, Single Phase AC Manual Motor Controller, suitable as Motor Disconnect
