Greenlee DDVM-40/K03 Double Vision Dual Display Voltmeter 5V-40kV, 14 Inch L x 4 Inch H x 4-5/8 Inch W
- MPN: DDVM-40/K03
- UPC: 783310081142
- PPN: GRN-DDVM-40/K03
- UNSPSC: 41113637
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Double Vision Dual Display Voltmeter 5V-40kV, 14 Inch L x 4 Inch H x 4-5/8 Inch W
Features
- Measures voltage and performs phasing operations from 5V to 40kV
- Two large displays are synchronized with the same voltage reading shown

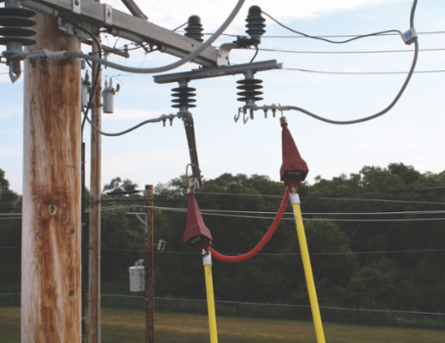

- Versatile for overhead and underground applications
- Capacitive Test Point and Peak Hold modes
- Tests for leakage current in cable fault test mode with available accessory
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Type
- Voltmeter
- Voltage Rating
- 5V - 40kV line-to-ground
- Display
- Two LED displays with 0.7" numeral height. Displays 3 digits
- Dimensions
- 14" L x 4" H x 4 5/8" W (36 cm x 10 cm x 11 cm)
- Included

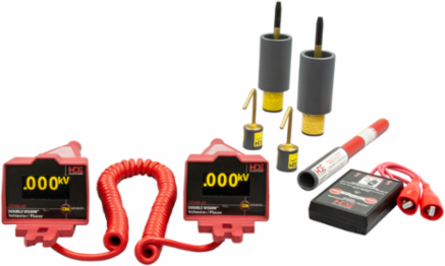

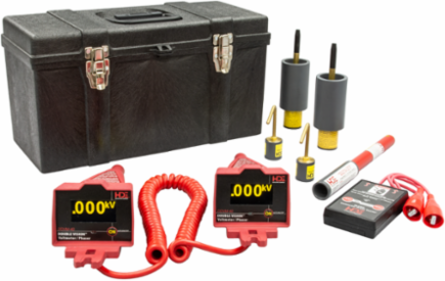

- DDVM-40, (2) 025-OLPS-5 Overhead Brass Hook Probes, (1) PT-5000B Proof Tester Proof Tester Voltmeter Tester, (2) ASP-15/25 15kV/25kV UG Bushing Probes, (1) CFT-35 Cable Fault Tester and CS-DDVM Case Case
Sub BrandHDE
ModelDDVM-40
AccuracyWithin 1% of reading +/- 3 counts
Operating Temperature-20°F to +120°F (-29°C to +49°C)
Frequency Rating25 - 1000Hz AC/DC
Regulations
- REACH Compliant
- Yes
