Greenlee DDVM-40/K02 VM-40 Dual Display Voltmeter Set 5V-40kV for Overhead/Underground Use
- MPN: DDVM-40/K02
- UPC: 783310081135
- PPN: GRN-DDVM-40/K02
- UNSPSC: 41113637
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

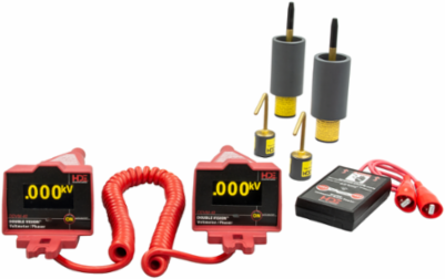

VM-40 Dual Display Voltmeter Set 5V-40kV for Overhead/Underground Use
Features
- Measures voltage and performs phasing operations from 5V to 40kV
- Two large displays are synchronized with the same voltage reading shown

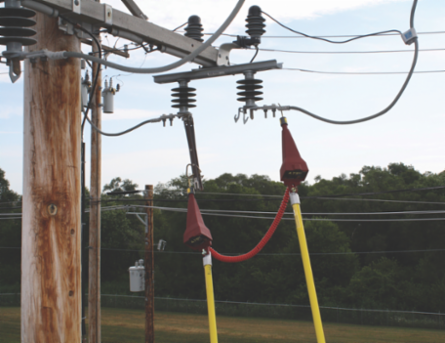

- Versatile for overhead and underground applications
- Capacitive Test Point and Peak Hold modes
- Tests for leakage current in cable fault test mode with available accessory
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Type | Voltmeter |
| Voltage Rating | 5V - 40kV line-to-ground |
| Display | Two LED displays with 0.7" numeral height. Displays 3 digits |
| Dimensions | 14" L x 4" H x 4 5/8" W (36 cm x 10 cm x 11 cm) |

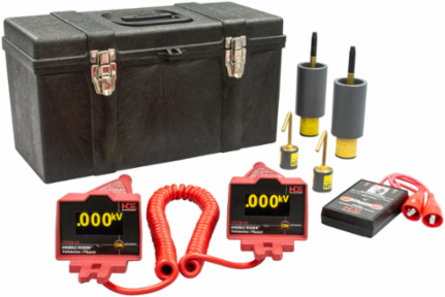

| Included | DDVM-40, (2) 025-OLPS-5 Overhead Brass Hook Probes, (1) PT-5000B Proof Tester Proof Tester Voltmeter Tester, (2) ASP-15/25 15kV/25kV UG Bushing Probes and CS-DDVM Case Case |
| Sub Brand | HDE |
|---|---|
| Model | DDVM-40 |
| Accuracy | Within 1% of reading +/- 3 counts |
| Operating Temperature | -20°F to +120°F (-29°C to +49°C) |
| Frequency Rating | 25 - 1000Hz AC/DC |
Regulations
| REACH Compliant | Yes |
|---|
