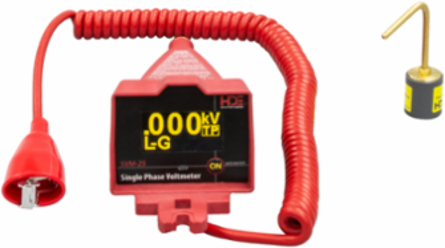

Greenlee SVM-25 High Voltage Voltmeter 5V-25kV, LED Display, -20°F to +120°F Operating Temperature
- MPN: SVM-25
- UPC: 783310555407
- PPN: GRN-SVM-25
- UNSPSC: 41113637
CAD
$2206.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
High Voltage Voltmeter 5V-25kV, LED Display, -20°F to +120°F Operating Temperature
Features
- Measures voltage from 5V to 25kV line to line
- Large, easy to read LED display

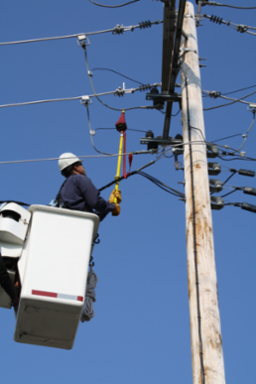

- Versatile for overhead and underground applications
- Capacitive Test Point and Peak Hold modes
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Type
- Voltmeter
- Voltage Rating
- 5V - 25kV line-to-ground
- Display
- LED 0.7" letter height
- Dimensions
- 14" L x 4.6" W x 4.1" H (36 cm x 12 cm x 10 cm)

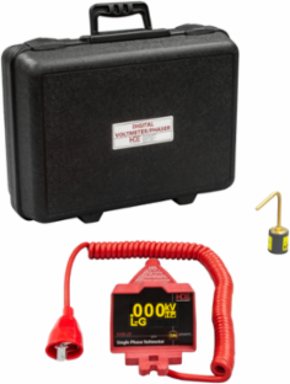

- Included
- SVM-25, 025-OLPS-5 Overhead Brass Hook probe, CS-SVM Case
Sub BrandHDE
ModelSVM-25
AccuracyWithin 1% of reading +/- 3 counts (line-to-ground & line-to-line measurements)
Operating Temperature-20°F to +120°F (-29°C to +49°C)
Frequency Rating25–1000Hz
Regulations
- REACH Compliant
- Yes
