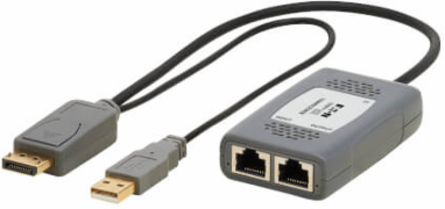

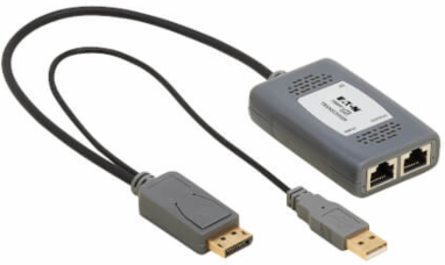

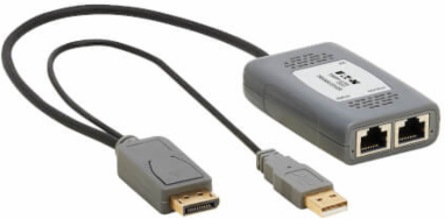

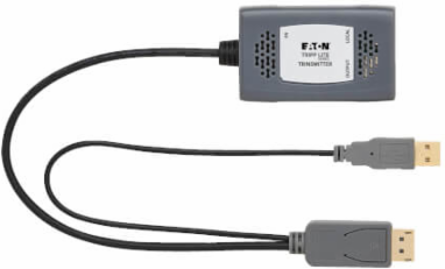

Tripp Lite B127U110PD DisplayPort over Cat6 Pigtail Receiver with Repeater, 4K 60 Hz, 4:4:4, HDCP 2.2, 230 ft, TAA
- MPN: B127U110PD
- UPC: 037332281272
- PPN: TRP-B127U-110-PD
CAD
$232.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
DisplayPort over Cat6 Pigtail Receiver with Repeater, 4K 60 Hz, 4:4:4, Transceiver, HDCP 2.2, 230 ft. (70.1 m), TAA
Documentation & Downloads
Specifications
Performance
- Max Video Resolution
- 3840 x 2160 (4K) @ 60 Hz
- Chroma Subsampling
- 4:2:0; 4:2:2; 4:4:4
- Transmission Distance
- 230 ft (70 m)
- Video Input
- RJ45 (Female)
- Monitors Supported
- 1
- DisplayPort Specification
- 1.2
- Power Source
- USB
- Recommended Cable
- 24 AWG Solid Wire Cat6
- Storage Temperature
- 5° to 122°F (-15° to 50°C)
Color Depth36-bit Deep Color
HDR SupportYes
TechnologyCat6; DisplayPort; USB
Video OutputDisplayPort (Male)
HDCP1.4; 2.2
Daisy-chainableYes
Power Over Cable (PoC)No
Operating Temperature32° to 104°F (0° to 40°C)
Relative Humidity0–85% non-condensing
Dimensions
- Form Factor
- Pigtail
- Cable Outer Diameter
- 4.2 mm
Wire Gauge28 AWG
Material
- Housing Material
- Plastic
- Color
- Black
Cable JacketPVC
Reference
- Warranty
- 1-year limited
