DisplayPort over Cat6 Extender Kit, Transmitter and Receiver with Repeater, 4K, 4:4:4, PoC, 230 ft. (70.1 m), TAA

DisplayPort over Cat6 Extender Kit, Transmitter and Receiver with Repeater, 4K, 4:4:4, PoC, 230 ft. (70.1 m), TAA - https://images.province-electric.com/TRP-B127A-111-BDTD/dp-cat6-tx-tsvr-kit-4k30hz-medium-alt-lcza.webp

Documentation & Downloads

Tripp Lite B127A111BDTD DisplayPort over Cat6 Extender Kit, Transmitter and Receiver with Repeater, 4K, 4:4:4, PoC, 230 ft. (70.1 m), TAA

MPN: B127A111BDTD
UPC: 037332263964
PPN: TRP-B127A-111-BDTD

$541.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

DisplayPort over Cat6 Extender Kit, Transmitter and Receiver with Repeater, 4K, 4:4:4, PoC, 230 ft. (70.1 m), TAA

Features

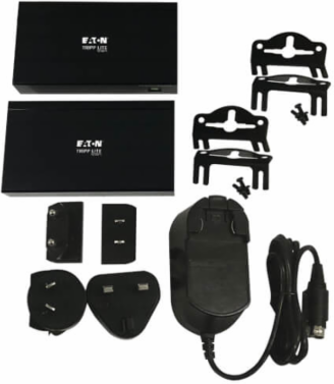

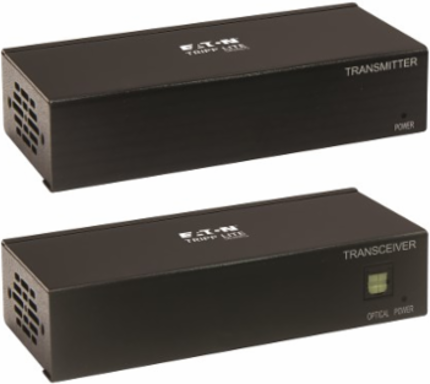

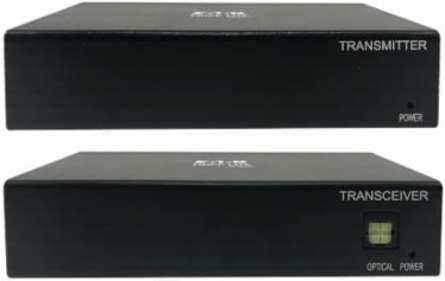

Includes transmitter and receiver/transceiver units
External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A); includes 4 international plug adapters (North America, Europe, U.K. and Australia)
Mounting hardware included

Documentation & Downloads

Specifications

Dimensions

Transmitter Unit Dimensions: 2.7 x 11.5 x 6.24 in

Receiver Unit Dimensions2.7 x 11.5 x 6.24 in

Material

Material: Metal

Form Factor: Box

ColorBlack

Compliance

Product Warranty: 1-year limited warranty

Reference

Product Type: Extender Kit

Recommended Cabling24AWG Cat6

Performance

Max Supported Video Resolution: 3840 x 2160 @ 30Hz

Chroma Subsampling: 4:4:4

Transmission Distance: 230 ft; 400 ft with signal booster

Range Extension with Booster: Yes

DisplayPort Specification: 1.2a

Technology: Cat6; DisplayPort; HDMI; PoC

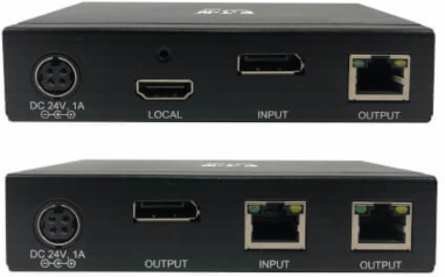

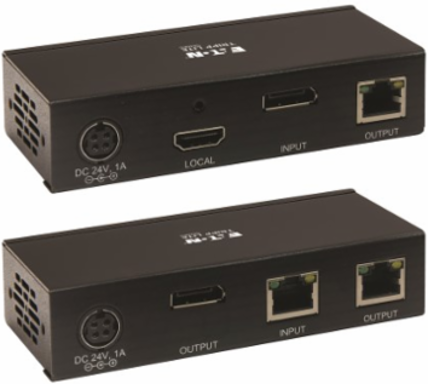

Video Output: DisplayPort (Female); HDMI (Female)

AC Power Adapter Input: 100-240V / 50/60hz / 0.6A

Receiver Power Source: AC Adapter (Included); Power Over Cable

Storage Temperature Range: 5° to 122°F (-15° to 50°C)

HDR SupportNo

Max Supported Color Depth36-bit Deep Color

Maximum Distance with Booster400 ft

Audio SpecificationPass-through LPCM 2.0/5.1/7.1

HDCP Specification1.4; 2.2

Video InputDisplayPort (Female)

Number of Monitors Supported1

AC Power Adapter Output24V / 1A

Operating Temperature Range32° to 104°F (0° to 40°C)

Relative Humidity0-85% non-condensing
