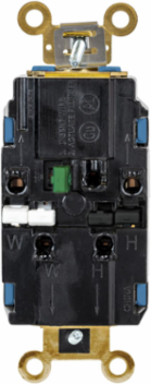

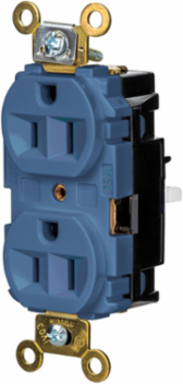

Hubbell Wiring Device-Kellems HBL5262STBL EdgeConnectTM Duplex Receptacle, 2-Pole 3-Wire, 15A 125V, Screwless Terminal, Blue
- MPN: HBL5262STBL
- UPC: 783585687476
- PPN: HBL-HBL5262STBL
- UNSPSC: 39121406
CAD
$28.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, EdgeConnect™, Duplex Receptacle, Industrial Grade, 2-Pole 3-Wire, 15A 125V, 5-15R, Screwless Terminal, Blue
Features
- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Triple and Double Wipe Contacts
- Easy access split circuit tab
- EdgeConnect™ Technology, Screwless Termination
Specifications
Additional
- Amperage
- 15 A
- Number of Poles
- 2-Pole
- Wire Size
- #14 AWG to #10 AWG
- Temperature Rating
- -40 C to 75 C
- Size
- Standard Sized Product
- Material
- Thermoplastic/C
- Country of Origin
- CN
- Certifications
- UL Listed, CSA Certified, Fed. Spec. W-C-596, NEMA WD-6 Compliant
Voltage125 V
Number of Wires3-Wire
Dielectric StrengthWithstands 2,000 V minimum
Mounting TypeScrew Mount
TypeStandard Duplex
ColorBlue
NEMA Rating5-15R
