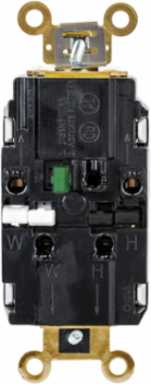

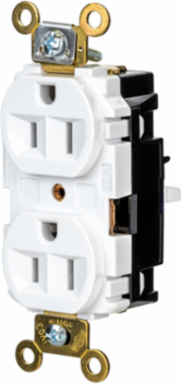

Hubbell Wiring Device-Kellems HBL5262STW EdgeConnect™ Duplex Receptacle 15A 125V 2-Pole 3-Wire
- MPN: HBL5262STW
- UPC: 783585687551
- PPN: HBL-HBL5262STW
- UNSPSC: 39121406
CAD
$28.58
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, EdgeConnect™, Duplex Receptacle, Industrial Grade, 2-Pole 3-Wire, 15A 125V, 5-15R, Screwless Terminal, White
Features
- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Triple and Double Wipe Contacts
- Easy access split circuit tab
- EdgeConnect™ Technology, Screwless Termination
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Width | 1.900 in |
| Size | Standard Sized Product |
| Color | White |
| Dielectric Strength | Withstands 2,000V minimum |
| Mounting | Screw Mount |
| Number of Poles | 2-Pole |
| Phase | Single |
| Standard | UL Listed to UL498 File No. E2186;Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596,NEMA® WD-6 Compliant |
| Type | Standard Duplex |
| Wire Size | #14 AWG to #10 AWG |
| General Literature Asset 1 Display Text | EdgeConnect™ Technology |
| General Literature Asset 3 Display Text | EdgeConnect™ Termination vs Standard Push Wire |
| Nema Rating | 5-15R |
| Number Of Wires | 3-Wire |
| Class Code | A04 |
| Harmonization Code | 8536698000 |
| Sub Class Code | A04A020 |
| Series | EdgeConnect™ Series |
| BOX SIZE | 4.000x9.600x4.600 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585687551 |
| Case Weight | 27.000 lb. |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Current / Amperage Rating | 15 A |
|---|---|
| Industry Standard(s) | UL Listed to UL498 File No. E2186;Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596,NEMA® WD-6 Compliant |
| Application | Heavy Duty |
| Connection | 2-Pole, 3 Wire |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| NEMA Rating | 5-15R |
| Number of Wires | 3-Wire |
| Special Features | EdgeConnect™ Technology, Screwless Termination |
| Temperature Rating | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Voltage Rating | 125 V |
| Weight | 0.25 lb. |
| General Literature Asset 2 Display Text | EdgeConnect™ Technology FAQ |
| Mounting Type | Screw Mount |
| Number Of Poles | 2-Pole |
| Style | Finder Groove Face |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Material | Thermoplastic/C |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.600 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| Pallet Height | 43.000 in |
| Pallet Weight | 904.000 lb. |
| NAICS Code | 335931A102 |
