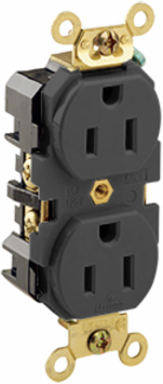

Leviton 5262-E 15 Amp Self-Grounding Duplex Receptacle Outlet, Industrial Grade, NEMA 5-15R
Leviton 5262-E 15 Amp Self-Grounding Duplex Receptacle Outlet, Industrial Grade, NEMA 5-15R
- MPN: 5262-E
- UPC: 078477139462
- PPN: LEV-5262-E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$13.75/ EA
Description
Duplex Receptacle Outlet, Extra Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Black
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13399
- Warranty
- 10-Year Limited
CSA C22.2 No. 42File 152105
NOM057
UL498File E13399
Material Specifications
- Body Material
- Thermoplastic Nylon
- Color
- Black
- Ground Clips
- Brass-Plated
- Line Contacts
- Brass Triple-Wipe
- Terminal Screws
- Brass 10-32
Clamp NutsZinc-Plated Steel
Face MaterialThermoplastic Nylon
Grounding ScrewBrass 8-32
Strap MaterialBrass
YokeBrass
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Torque Range14-16 in-lbs
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantTrue
Product Features
- Device Type
- Duplex Receptacle Outlet
- Grade
- Extra Heavy-Duty Industrial Specification Grade
Feature 4Smooth Face
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
