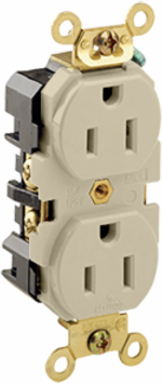

Leviton 5262-I 15 Amp Duplex Receptacle, Industrial Grade, Self-Grounding, 125 Volt
- MPN: 5262-I
- UPC: 078477139424
- PPN: LEV-5262-I
CAD
$14.30
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Duplex Receptacle Outlet, Extra Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Ivory
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Please Contact Customer Service |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 & WD-6 |
| UL Fed Spec WC-596 | File E13399 |
| Warranty | 10-Year Limited |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| NOM | 057 |
| UL498 | File E13399 |
Material Specifications
| Body Material | Thermoplastic Nylon |
|---|---|
| Color | Ivory |
| Ground Clips | Brass-Plated |
| Line Contacts | Brass Triple-Wipe |
| Terminal Screws | Brass 10-32 |
| Clamp Nuts | Zinc-Plated Steel |
|---|---|
| Face Material | Thermoplastic Nylon |
| Grounding Screw | Brass 8-32 |
| Strap Material | Brass |
| Yoke | Brass |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal Accom. | 14-10 AWG |
| Termination | Back or Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| Device Type | Duplex Receptacle Outlet |
|---|---|
| Grade | Extra Heavy-Duty Industrial Specification Grade |
| Feature 4 | Smooth Face |
|---|
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
