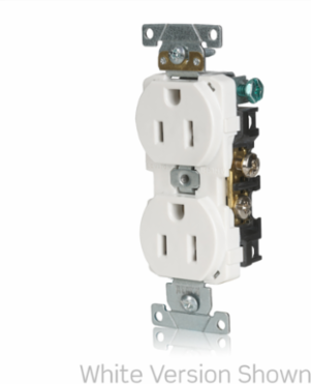

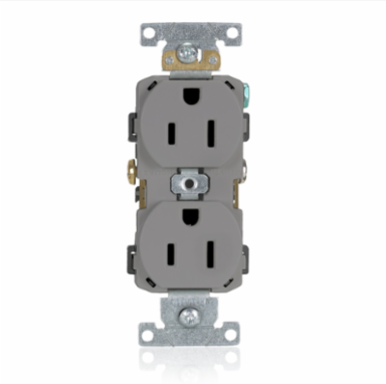

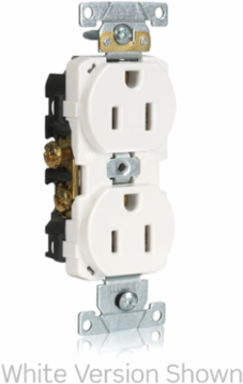

Leviton CR015-GY 15 Amp Duplex Receptacle Outlet, Commercial Grade, Self-Grounding, NEMA 5-15R
Leviton CR015-GY 15 Amp Duplex Receptacle Outlet, Commercial Grade, Self-Grounding, NEMA 5-15R
- MPN: CR015-GY
- UPC: 078477815236
- PPN: LEV-CR015-GY
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4.46/ EA
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Gray
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-2 WD-6
- Warranty
- 10-Year Limited
Applicable StandardsUL 498| Fed Spec W-C-595G| CSA C22.2 No. 42
NOM057
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Grounding Screw
- Steel 8-32
- Strap Material
- Zinc-Plated Steel
ColorGray
Ground ClipsBrass-Plated
Line ContactsBrass Double Wipe .031 Thick
Terminal ScrewsSteel 8-32
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.14-10 AWG
TerminationSide Wire
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Device Type
- Duplex Receptacle Outlet
- Grade
- Commercial Specification Grade
Feature 4Smooth Face
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
