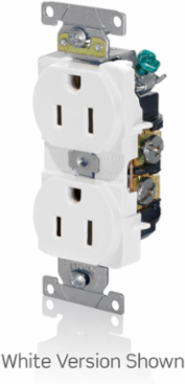

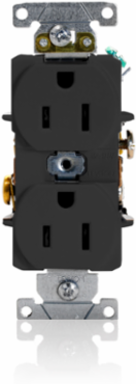

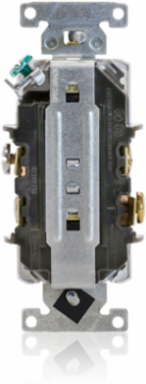

Leviton 5262-SE 15 Amp Heavy-Duty Duplex Receptacle, Self-Grounding, 125 Volt, NEMA 5-15R
Leviton 5262-SE 15 Amp Heavy-Duty Duplex Receptacle, Self-Grounding, 125 Volt, NEMA 5-15R
- MPN: 5262-SE
- UPC: 078477205310
- PPN: LEV-5262-SE
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4.75/ EA
Description
Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Black
Features
- Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL Fed Spec WC-596
- File E13399
- Warranty
- 10-Year Limited
CSA C22.2 No. 42File 152105
NOM057
UL498File E13399
Material Specifications
- Body Material
- PBT Polyester Blend
- Color
- Black
- Ground Clips
- Brass
- Line Contacts
- 0.030" Brass
- Terminal Screws
- #8 Triple-Drive Brass
Clamp NutsGalvanized Steel
Face MaterialPBT Polyester Blend
Grounding Screw#8 Hex Head, Triple-Drive Brass
Strap MaterialSteel (Galvanized G60)
Mechanical Specifications
- Product ID
- Ratings are permanently marked on the device
- Terminal Accom.
- #14-#10 AWG
- Termination
- Back and Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Silver-Neutral, Green-Ground
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Device Type
- Duplex Receptacle Outlet
- Grade
- Heavy-Duty Industrial Specification Grade
Feature 4Smooth Face
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-40°C to 75°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 3000 V min
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
