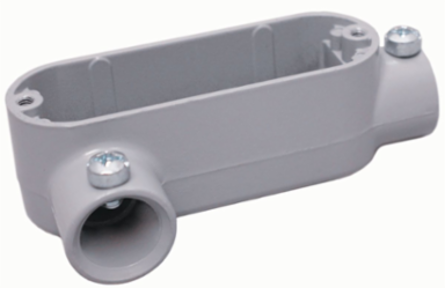

Killark EBLR-4 Aluminum Conduit Body Set Screw Type 1-1/4 Inch LR Hub, 32 Cu. In Volume
Killark EBLR-4 Aluminum Conduit Body Set Screw Type 1-1/4 Inch LR Hub, 32 Cu. In Volume
- MPN: EBLR-4
- UPC: 783936165752
- PPN: HBL-EBLR-4
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$119.98/ EA
Description
E Series - Aluminum Conduit Body - Set Screw Type - LR Type - Hub Size1-1/4 Inch
Features
- Flat back design for easy mounting close to walls
- Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish
- May be used on aluminum or steel conduit
- Lightweight, makes installation simple
- Ideal for commercial and light industrial applications
- Furnished with cover and gasket
- Flat back design for easy mounting close to walls. Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish. May be used on aluminum or steel conduit. Lightweight, makes installation simple. Volume is 32 cu. in.
Specifications
Specifications
- Country of Origin
- IN
- Each - Width
- 3.469 in
- Color
- Gray
- Special Features
- Flat back design for easy mounting close to walls. Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish. May be used on aluminum or steel conduit. Lightweight, makes installation simple. Volume is 32 cu. in.
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1-1/4" LR CONDUIT BODY SET SCR
- Harmonization Code
- 7609000000
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LR
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.340 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2 EA
Width3.469 in
ApplicationFor use with EMT conduit in dry locations. Use conduit bodies for making turns in conduit systems, connecting conduit sections, as pull outlets, and to provide openings for maintenance and making taps and splices to conductors.
Hub Size1-1/4"
TypeConduit Body
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging1.17
MaterialAluminum, Copper Free (less than 4/10 of 1%)
BOX SIZE4.500x10.500x5.750 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936165752
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
