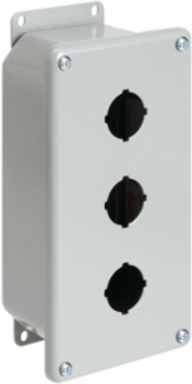

nVent Hoffman E3PBGXM Deep Pushbutton Enclosure 3PB x 22.5mm Steel, NEMA Type 12, Gray
- MPN: E3PBGXM
- UPC: 783510135287
- PPN: HOF-E3PBGXM
- UNSPSC: 39121326
CAD
$185.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Deep Pre-cut pushbutton enclosures provide extra wiring space to house and protect components. This Deep Pushbutton Enclosures Type 12, E3PBGXM item measures 3PB x 22.5mm with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding nut in body of enclosure
- Oil-resistant gasket
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during installation
- External welded-on mounting brackets for easy installation
- Factory stamped 4-way pushbutton holes
- 22.5-mm size holes
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- 12 Indoor, dust-resistant
- IP Rating
- IP65
- Depth (D)
- 89 mm
- Height (H)
- 184 mm
- Weight
- 2.6 lb
- Hole Quantity
- 3
- Pushbutton Hole Pattern
- 4-way stamped
- Material
- 14 gauge Steel
- Color Code
- ANSI 61
- Seams
- Continuously welded and ground smooth
- Gasket
- Oil-resistant
- Grounding
- Grounding stud and nut in body
- Mounting Brackets
- External welded-on
Protection RatingNEMA Type 12, 13
Overall Dimensions (L x W)210 x 75 mm
Thickness (T)1.9 mm
Width (W)70 mm
Size3 Pushbutton x 22.5 mm
Pushbutton Hole Size22.5 mm
Pushbutton Size Compatibility22.5 mm standard pushbuttons and switches
FinishANSI 61 gray polyester powder paint
ColorGray
Cover ScrewsCaptivated, threaded into sealed wells
Bonding ProvisionOn cover
Mounting (G x H)197 x 48 mm
HingeInternal detachable hinge for covers on enclosures with multiple columns of holes
