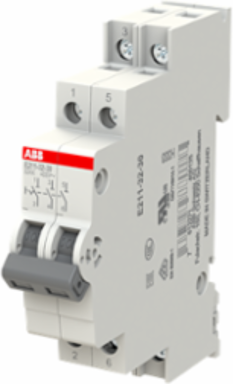

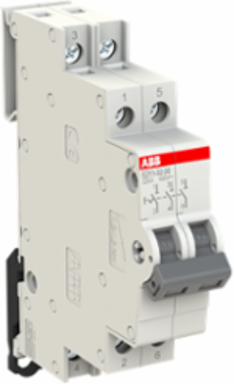

ABB E211-32-30 E211-32-30ON-OFF Switch,32 A,acc. to EN 250/400 V AC,3NO,0NC,0CO, El. Color:Grey, MW:1
- MPN: E211-32-30
- UPC: 804325648790
- PPN: ABB-E211-32-30
CAD
$74.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
On-Off switches according DIN EN 60669-1, VDE 0632 Part 1, Rated currents: 16/25/32 A, 250/400 VACPDC, Contacts: 1 NO/2 NO/3 NO/4 NO, Module width: 0,5/1
Specifications
Installation
- Instructions and Manuals
- No document needed
Dimensions
- Width in Number of Modular Spacings
- 1
- Product Net Height
- 85 mm
- Product Net Weight
- 80 g
Product Net Width18 mm
Product Net Depth / Length68 mm
Built-In Depth (t2)68 mm
Technical
- Standards
- EN60669-1EN60669-2-4IEC/EN60947-3IEC60068-2-2IEC60068-2-1IEC60068-2-30VDE0632-1VDE0632-2-4UL508
- Rated Operational Voltage
- acc. to EN 250/400 V ACacc. to UL 508 240 V AC
- Input Voltage Type
- AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- 3 kA
- Minimum Switching Capacity
- 24 V AC25 mA
- Contact Position Indication
- ON / OFF
- Number of Contacts CO
- 0
- Number of Contacts NO
- 3
- Number of Main Contacts NO
- 3
- Tightening Torque
- 1.2-1.5 N·m
- Switch Type
- Double Interrupting Contacts
- Options Provided
- 3 NO
- Cover Color
- Grey
- Connecting Capacity
- Solid 1x1…6 mm²Solid 2x2.5 mm²Flexible 1x0.75…2x2.5 mm²
- Rated Operational Current DC-22A (Ie)
- (50 V DC) 32 A(200 V DC) 3 A
Rated Voltage (Ur)Minimum 400 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Current (In)32 A
Rated Frequency (f)50/60 Hz
Power Loss3.85 W
Number of Poles3
Number of Contacts NC0
Number of Main Contacts NC0
Number of Auxiliary Contacts CO (SPDT)0
Utilization CategorySwitching of mixed resistive and inductive loads, including moderate overloads - frequent actuation (AC-22A)Switching of mixed resistive and inductive loads, including moderate overloads (i.e. shunt motors) - frequent actuation (DC-22A)
Material of ConductorCopper
RemarksSealable in the On and Off positions
Control Element ColorGrey
Rated Operational Current AC-22A (Ie)(400 V) 32 A
Classifications
- ETIM 9
- EC001545 - Main switch for distribution board
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- CN8
- 85365053
- Object Classification Code
- S
EPLAN Function DefinitionSwitch / pushbutton / Triple switch / pushbutton, 6 connection points / Switch, triple NO contact 1_2_3_4_5_6
WEEE B2C / B2BBusiness To Consumer
eClassV11.0 : 27142301
Environmental
- Ambient Air Temperature
- Operation -25...+55 °CStorage -40...+70 °C
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- REACH Declaration
- 2CCC005047D0201
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
Degree of ProtectionIP20
RoHS Information2CCC441013D0201
Environmental Information2CCC441003C0201
Technical UL/CSA
- Short-Circuit Current Rating (SCCR)
- 3 kA
Ordering
- Minimum Order Quantity
- 10 piece
- Package Level 1 Gross Weight
- 85 g
- E-Number (Switzerland)
- 437370338
Package Level 1 Unitsbox 10 piece
E-Number (Finland)3602410
