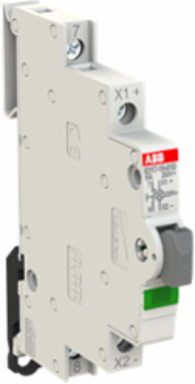

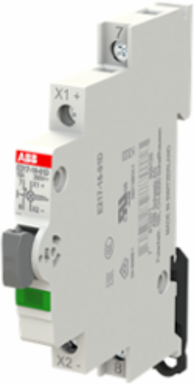

ABB E217-16-01D220 E217-16-01D220Luminous Pushbutton,16 A,acc. to EN 250 V AC,0NO,1NC,0CO, El. Color:Grey,1LED,Green, MW:0.5
ABB E217-16-01D220 E217-16-01D220Luminous Pushbutton,16 A,acc. to EN 250 V AC,0NO,1NC,0CO, El. Color:Grey,1LED,Green, MW:0.5
- MPN: E217-16-01D220
- UPC: 804325648981
- PPN: ABB-E217-16-01D220
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$76.00/ EA
Description
Pushbutton 1 NO / 1 NC with maintenance-free LED, Rated current: 16A/250 VACPDC, LED colour: green, 115-250 VACPDC, 12-48 VACDCPDC, 110-220 VDCPDC, Module width 0,5
Specifications
Installation
- Instructions and Manuals
- No document needed
Dimensions
- Width in Number of Modular Spacings
- 0.5
- Product Net Height
- 85 mm
- Product Net Weight
- 53 g
Product Net Width9 mm
Product Net Depth / Length68 mm
Built-In Depth (t2)75 mm
Technical
- Standards
- EN60068-2-1EN60068-2-2EN60068-2-30DIN EN 60669-1VDE 0632-1UL508
- Rated Operational Voltage
- acc. to EN 250 V ACacc. to UL 508 240 V AC
- Auxiliary Voltage AC/DC
- LED Indicator 60…220 V AC
- Rated Current (In)
- 16 A
- Power Loss
- 1.5 W
- Number of Poles
- 1
- Number of Contacts NC
- 1
- Number of Main Contacts NC
- 1
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Tightening Torque
- 1.2-1.5 N·m
- Material of Conductor
- Copper
- Remarks
- Sealable in the On and Off positions
- Control Element Color
- Grey
- Connecting Capacity
- Solid 1x1…6 mm²Solid 2x2.5 mm²Flexible 1x0.75…2x2.5 mm²
Rated Voltage (Ur)Lamp 230 ... 250 V
Voltage Range60 ... 220 V DC
Maximum Switching Voltage250 V
Rated Frequency (f)50/60 Hz
Power Watt1.5 W
Number of Contacts CO0
Number of Contacts NO0
Number of Main Contacts NO0
Number of LEDs1
Switch TypeDouble Interrupting Contacts
Options Provided1 NC
ColorGreen
Lamp ColorGreen
Classifications
- ETIM 9
- EC001546 - Push button for distribution board
- WEEE B2C / B2B
- Business To Consumer
- eClass
- V11.0 : 27142302
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
CN885365053
Object Classification CodeS
Environmental
- Ambient Air Temperature
- Operation -25...+55 °CStorage -40...+70 °C
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- REACH Declaration
- 2CCC005047D0201
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
Degree of ProtectionIP20
RoHS Information2CCC441014D0201
Environmental Information2CCC441003C0201
Ordering
- Minimum Order Quantity
- 10 piece
- Package Level 1 Gross Weight
- 594 g
- E-Number (Switzerland)
- 467573068
Package Level 1 Unitsbox 10 piece
E-Number (Finland)2312322
