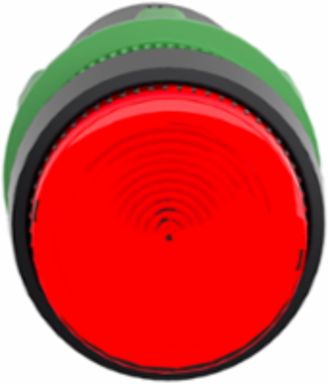

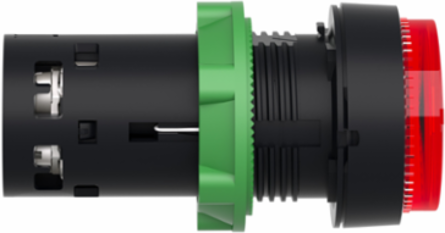

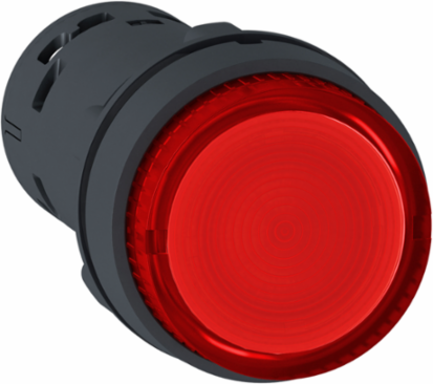

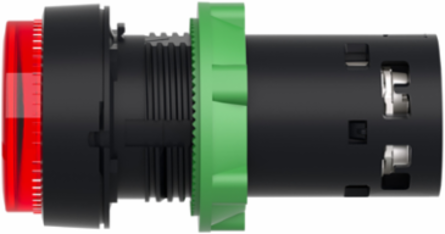

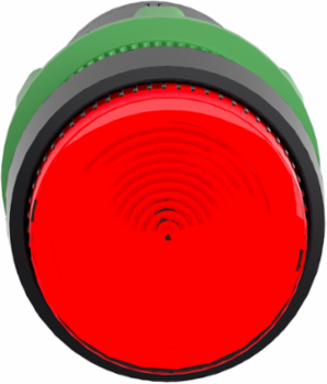

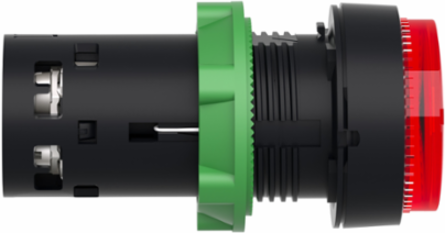

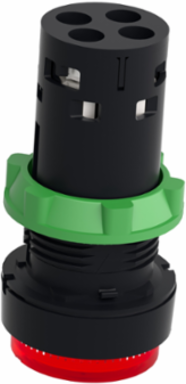

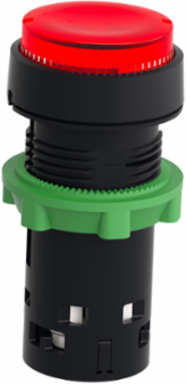

Schneider Electric XB7NW34B2 Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 24V AC DC, 1NC

Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 24V AC DC, 1NC
Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 24V AC DC, 1NC
Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 24V AC DC, 1NC
Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 24V AC DC, 1NC
Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 24V AC DC, 1NC
  • MPN: XB7NW34B2
  • PPN: SCH-XB7NW34B2

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$177.89/ EA

    Description

    This Harmony XB7, illuminated projecting monolithic red push button operates with a spring return / impulse mechanism, is supplied with 24V AC/DC, uses an integral LED and has screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.

    Specifications

    Environment

    Product Certifications
    GOST || CCC
    Standards
    CSA C22.2 No 14 || UL 508 || IEC 60947-5-1 || IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
    Vibration Resistance
    5 gn 2-500 Hz)IEC 60068-2-6
    Nema Degree Of Protection
    NEMA 12 UL 50 E
    Protective Treatment
    TH
    Ambient Air Temperature For Operation-25-70 °C
    Shock Resistance50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration
    Ambient Air Temperature For Storage-40-70 °C
    Electrical Shock Protection Classclass II IEC 61140
    Electromagnetic Emissionclass B IEC 55011

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1805012EN
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    China Rohs Regulation
    X
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileENVEOLI1805012EN

    Complementary

    Terminals Description Iso N°1
    (11-12)NC

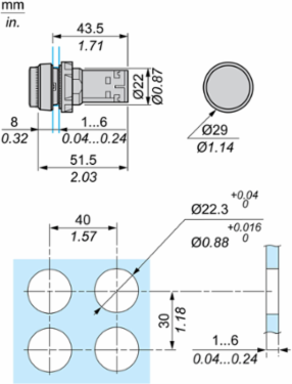

    Fixing Center
    >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
    Fixing Mode
    fixing nut beneath head 2-2.4 N.m
    [Uimp] Rated Impulse Withstand Voltage
    4 kV IEC 60947-1
    Current Consumption
    18...27 mA
    Service Life
    70000 h at rated voltage and 25 °C
    Signalling Type
    steady
    Contact Operation
    slow-break
    Mechanical Durability
    300000 cycles
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Cad Overall Depth
    57.5 mm
    Device Mounting
    fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
    Short-Circuit Protection4 A cartridge fuse gG IEC 60947-5-1
    Positive Openingwith IEC 60947-5-1 appendix K
    Net Weight0.023 kg
    Cad Overall Height29 mm
    Electrical Durability1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
    [Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
    [Ie] Rated Operational Current0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
    Supply Voltage Limits19.2-30 V DC || 21.6-26.4 V AC
    Electrical Reliabilityλ <= 10exp(-6) 17 V 5 mA IEC 60947-5-4
    Cad Overall Width29 mm
    Shape Of Screw Headcross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

    Specifications

    Operator Additional Information
    with plain lens
    Light Source
    LED
    Type Of Operator
    spring return
    Shape Of Signaling Unit Head
    round
    Device Presentation
    monolithic product
    Contacts Type And Composition
    1 NC
    Operator Profile
    red projecting, unmarked
    [Us] Rated Supply Voltage
    24 V AC/DC
    Range Of ProductHarmony XB7
    Mounting Diameter22 mm
    Product Or Component Typeilluminated push-button
    Ip Degree Of ProtectionIP20 IEC 60529 rear face) || IP65 IEC 60529 front face)

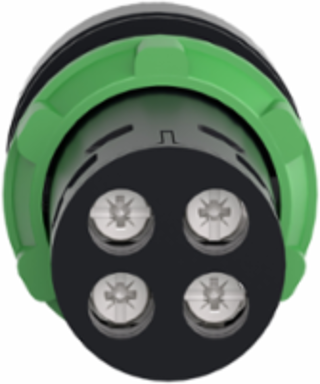

    Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
    Sale Per Indivisible Quantity10
    Device Short NameXB7
    Bulb Baseintegral LED
