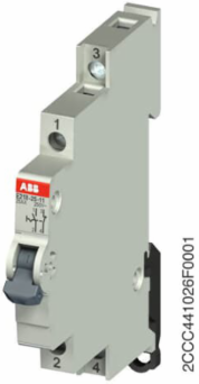

ABB E218-25-11 E218-25-11Control Switch,25 A,acc. to EN 250 V AC,1NO,1NC,0CO, El. Color:Grey, MW:0.5
- MPN: E218-25-11
- UPC: 804325548564
- PPN: ABB-E218-25-11
CAD
$55.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control switches according DIN EN 60669-1, VDE 0632 Part 1, Rated currents: 16/25 A, 250 VACPDC, Contacts: 2 NO + 2 NC/3 NO + 1 NC/1 NO + 1 NC, Module width: 0,5/1
Specifications
Installation
- Instructions and Manuals
- No document needed
Dimensions
- Width in Number of Modular Spacings
- 0.5
- Product Net Height
- 85 mm
- Product Net Weight
- 44 g
Product Net Width9 mm
Product Net Depth / Length68 mm
Built-In Depth (t2)68 mm
Technical
- Standards
- EN60669-1VDE0632-1IEC60068-2-2IEC60068-2-1IEC60068-2-38UL508
- Rated Operational Voltage
- acc. to EN 250 V ACacc. to UL 508 240 V AC
- Rated Current (In)
- 25 A
- Rated Frequency (f)
- 50/60 Hz
- Number of Poles
- 2
- Number of Contacts NC
- 1
- Number of Main Contacts NC
- 1
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Switch Type
- Double Interrupting Contacts
- Options Provided
- 1 NO + 1 NC
- Cover Color
- Grey
- Connecting Capacity
- Solid 1x1…6 mm²Solid 2x2.5 mm²Flexible 1x0.75…2x2.5 mm²
Rated Voltage (Ur)Minimum 250 V
Input Voltage TypeAC
Rated Service Short-Circuit Breaking Capacity (Ics)3 kA
Power Loss0.75 W
Number of Contacts CO0
Number of Contacts NO1
Number of Main Contacts NO1
Tightening Torque1.2-1.5 N·m
Material of ConductorCopper
RemarksSealable in the On and Off positions
Control Element ColorGrey
Classifications
- ETIM 9
- EC001545 - Main switch for distribution board
- WEEE B2C / B2B
- Business To Consumer
- eClass
- V11.0 : 27142301
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
CN885365053
Object Classification CodeS
Environmental
- Ambient Air Temperature
- Operation -25...+55 °CStorage -40...+70 °C
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- REACH Declaration
- 2CCC005047D0201
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
Degree of ProtectionIP20
RoHS Information2CCC441014D0201
Environmental Information2CCC441003C0201
Ordering
- Minimum Order Quantity
- 10 piece
- Package Level 1 Gross Weight
- 495 g
- E-Number (Switzerland)
- 437254838
Package Level 1 Unitsbox 10 piece
E-Number (Finland)3602425
