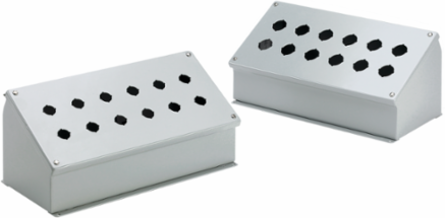

nVent Hoffman E2PBAM Sloped-Front Pushbutton Enclosures Type 12, 2PBx22.5mm, Gray, Steel
- MPN: E2PBAM
- UPC: 783510130657
- PPN: HOF-E2PBAM
- UNSPSC: 39121326
CAD
$205.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Sloped-front pre-cut pushbutton enclosures make it easier on operators and ideal for pedestal mounts. This Sloped-Front Pushbutton Enclosures Type 12, E2PBAM item measures 2PBx22.5mm with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Grounding stud on body
- Bonding provision on cover
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures 7.25 x 6.25 x 6.75 in. (184 x 159 x 171 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 140
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Thickness (T)
- 1.9
- Hole Quantity
- 2
- Overall Dimensions (L x W)
- 115 x 145
- Weight
- 2.9
- Material
- Steel
- Color
- Gray
Height (H)89
Depth (D)123
Product FamilyPushButton
Color CodeANSI 61
Hole Size (HS)22.5
Mounting (G x H)102 x 117
IP RatingIP65
Number of Holes2
Size2PB x 22.5mm
NEMA Rating12 Indoor, dust-resistant
