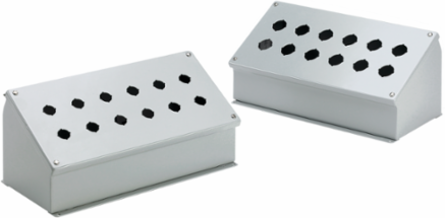

nVent Hoffman E4PBAM Sloped-Front Pushbutton Enclosures Type 12, 4PBx22.5mm, Gray, Steel
- MPN: E4PBAM
- UPC: 783510130671
- PPN: HOF-E4PBAM
- UNSPSC: 39121326
CAD
$262.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Sloped-front pre-cut pushbutton enclosures make it easier on operators and ideal for pedestal mounts. This Sloped-Front Pushbutton Enclosures Type 12, E4PBAM item measures 4PBx22.5mm with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Grounding stud on body
- Bonding provision on cover
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures 7.25 x 6.25 x 6.75 in. (184 x 159 x 171 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 254 |
| Protection Rating | NEMA Type 12 |
| Finish | Powder Coated |
| Thickness (T) | 1.9 |
| Hole Quantity | 4 |
| Overall Dimensions (L x W) | 115 x 260 |
| Weight | 5 |
| Material | Steel |
| Color | Gray |
| Height (H) | 89 |
|---|---|
| Depth (D) | 123 |
| Product Family | PushButton |
| Color Code | ANSI 61 |
| Hole Size (HS) | 22.5 |
| Mounting (G x H) | 102 x 232 |
| IP Rating | IP65 |
| Number of Holes | 4 |
| Size | 4PB x 22.5mm |
| NEMA Rating | 12 Indoor, dust-resistant |
