Bussman

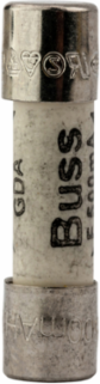

Bussman GDA-800MA Fast-Acting Fuse, 800 mA, 250V, Ceramic Tube, 1.5 kAIC

Fast-Acting Fuse, 800 mA, 250V, Ceramic Tube, 1.5 kAIC
  • MPN: GDA-800MA
  • UPC: 051712431262
  • PPN: BUS-GDA-800MA

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4.53/ EA

Specifications

Specifications

Height
.787 IN
Width
.197 IN
Type
Electronic, European (IEC)
Voltage Rating
250V
Interrupt Rating
1.5 kAIC at 250 Vac
Material Type
Ceramic tube with nickel-plated endcaps
Frequency Rating Maximum
50 HZ
Resistance
Typical DC cold: .245 ohms
Fuse Indicator
Non Indicating
Length.197 IN
Weight.006 LB
ApplicationElectronic circuits
Amperage Rating800 mA
ConnectionFerrule end X ferrule end
Packaging TypeStandard
Melting (L2T)Typical: .097A
Voltage DropTypical: 490 mV
NotesHigh breaking capacity
