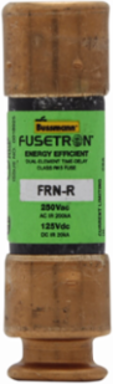

Bussmann FRN-R-10 Class RK5 Fuse 10 A Dual Ferrule End x Ferrule End 250 Vac 125 Vdc
- MPN: FRN-R-10
- UPC: 051712101738
- PPN: BUS-FRN-R-10
CAD
$9.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Class RK5 Fuse 10 A Dual Ferrule End x Ferrule End 250 Vac 125 Vdc
Features
- Engineered with an advanced dual-element design, this fuse provides a minimum of 8 seconds of time-delay at 500% of its rated current to ride through temporary inrush surges. This deliberate delay eliminates frustrating nuisance trips during machine startups while maintaining high-performance overload protection that guards your electrical motors against expensive insulation burnouts.
- Featuring a dedicated Class RK5 physical profile, this cartridge fuse includes a physical rejection notch to ensure it fits perfectly into code-compliant Class R fuse blocks and clips. This critical structural footprint prevents the dangerous accidental insertion of lower-rated or non-current-limiting fuses into your industrial panels, safeguarding personnel and keeping facility infrastructure fully up to code.
- Boasting a massive 200,000-amp RMS symmetrical interrupting capacity at 250V AC, this current-limiting fuse safely contains and isolates intense short-circuit faults. By rapidly interrupting massive electrical faults before they can damage downstream starters, disconnects, and control circuits, it prevents catastrophic equipment destruction and costly operational downtime.
- Rated for up to 250V AC and 125V DC, this highly versatile 10-amp fuse provides dual-medium circuit protection across variable power topologies. This broad flexibility makes it an ideal fit for industrial combination starters, motor control centers (MCCs), and specialized DC machinery disconnects, simplifying warehouse inventory for facility maintenance teams.
Documentation & Downloads
Specifications
Additional
- Amperage Rating
- 10 A
- Interrupt Rating
- 200 kAIC at 250 Vac
- Number of Elements
- Dual
- Response Time
- 8 sec at 500%
- Product Length/Depth
- 5.875 in
- Product Height
- 1 in
- Fuse Indicator
- Non-indicating
Voltage Rating250 Vac, 125 Vdc
Fuse TypeDual element, current-limiting, time-delay
ClassClass RK5
ConnectionFerrule end x ferrule end
Product Width1 in
Product Weight.294 lb
ComplianceCE Marked, UL Listed, CSA Certified
