Class RK5 Dual Fuse 20 A, 8 sec at 500%, Non-indicating, 250 Vac, 125 Vdc

Class RK5 Dual Fuse 20 A, 8 sec at 500%, Non-indicating, 250 Vac, 125 Vdc - https://images.province-electric.com/BUS-FRN-R-20/eaton-bussmann-series-frn-r-medium-alt-apfv.webp

Documentation & Downloads

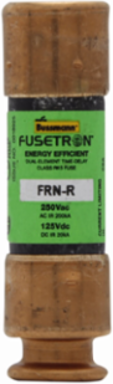

Bussmann FRN-R-20 Class RK5 Dual Fuse 20 A, 8 sec at 500%, Non-indicating, 250 Vac, 125 Vdc

MPN: FRN-R-20
UPC: 051712101752
PPN: BUS-FRN-R-20

CAD

$6.95

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Class RK5 Dual Fuse 20 A, 8 sec at 500%, Non-indicating, 250 Vac, 125 Vdc

Features

Engineered with a sophisticated dual-element design, the FRN-R-20 provides a minimum 8-second time-delay at 500% of its rated current. This allows it to hold momentary surges from motor startups and inductive loads without "nuisance tripping," while still providing high-speed response to dangerous short circuits.
As a Class RK5 current-limiting fuse, the FRN-R-20 offers superior protection levels with a massive 200kA interrupting rating. This advanced protection significantly reduces the let-through energy during a fault, shielding your downstream branch circuit components and sensitive motor controllers from catastrophic damage.
The Fusetron™ technology is specifically optimized to help protect motors against burnout caused by single-phasing or prolonged overloads. By coordinating the overload and short-circuit elements, it ensures that your industrial equipment stays operational longer while maintaining a strict safety ceiling.
Designed for high-conductivity and low-watt loss, the FRN-R-20 runs cooler than standard fuses in power panelboards and motor control centers. This energy-efficient operation minimizes heat buildup within enclosures, extending the life of adjacent electrical components and improving overall system reliability.

Documentation & Downloads

Specifications

Additional

Amperage: 20 A

Interrupt Rating: 20 kAIC at 125 Vdc, 200 kA at 250 Vac

Class: Class RK5

Connection: Ferrule end x ferrule end

Width: 1.56 in

Weight: 0.9 lb

Compliance: CE Marked

Voltage250 Vac, 125 Vdc

Response Time8 sec at 500%

Number of ElementsDual

Length1.56 in

Height1.56 in

IndicationNon-indicating
