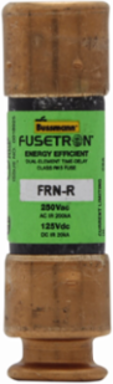

Dual Class RK5 Fuse, 5 A, Ferrule End x Ferrule End, 250 Vac, 125 Vdc, 20 kAIC

Dual Class RK5 Fuse, 5 A, Ferrule End x Ferrule End, 250 Vac, 125 Vdc, 20 kAIC - https://images.province-electric.com/BUS-FRN-R-5/eaton-bussmann-series-frn-r-medium-alt-yoqr.webp

Documentation & Downloads

Bussmann FRN-R-5 Dual Class RK5 Fuse, 5 A, Ferrule End x Ferrule End, 250 Vac, 125 Vdc, 20 kAIC

MPN: FRN-R-5
UPC: 051712507226
PPN: BUS-FRN-R-5

CAD

$10.97

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Dual Class RK5 Fuse, 5 A, Ferrule End x Ferrule End, 250 Vac, 125 Vdc, 20 kAIC

Features

The advanced dual-element design provides a minimum of 8 seconds of time-delay at 500% of the 5-amp rated current. This allows your machinery and motors to draw necessary temporary surge currents during startup without nuisance tripping, preventing costly downtime and unnecessary maintenance cycles.
Engineered with an exceptional interrupting rating of 200 kA RMS Symmetrical at 250 Vac (and 20 kA at 125 Vdc), this current-limiting fuse safely clears high-energy faults. It stops dangerous short-circuit currents before they can damage downstream equipment or compromise your industrial panelboard safety.
The precise low-level overload element delivers dedicated protection that prevents motor burnouts caused by overloads or single-phasing on three-phase electrical systems. It acts as a reliable safeguard for expensive industrial motors, reducing replacement costs and keeping your production line operational.

Documentation & Downloads

Specifications

Additional

Voltage: 250 Vac, 125 Vdc

Interrupting Rating: 20 kAIC at 125 Vdc, 200 kAIC at 250 Vac

Fuse Class: Class RK5

Fuse Indicator: Non-indicating

Product Height: .81 in

Product Weight: .1 lb

Compliance: CE Marked

Amperage5 A

Response Time8 sec at 500%

Number of ElementsDual

Product Length3 in

Product Width.81 in

ConnectionFerrule end x ferrule end
