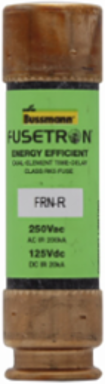

Dual Class RK5 Fuse 50 A, 3 Inch, Ferrule End, 250 Vac/125 Vdc, Non-Indicating

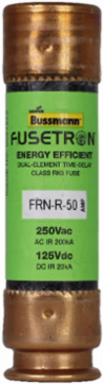

Dual Class RK5 Fuse 50 A, 3 Inch, Ferrule End, 250 Vac/125 Vdc, Non-Indicating - https://images.province-electric.com/BUS-FRN-R-50/eaton-bussmann-series-frn-r-medium-alt-voia.webp

Documentation & Downloads

Bussmann FRN-R-50 Dual Class RK5 Fuse 50 A, 3 Inch, Ferrule End, 250 Vac/125 Vdc, Non-Indicating

MPN: FRN-R-50
UPC: 051712101806
PPN: BUS-FRN-R-50

CAD

$11.52

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Dual Class RK5 Fuse 50 A, 3 Inch, Ferrule End, 250 Vac/125 Vdc, Non-Indicating

Features

Engineered with a smart dual-element architecture, the FRN-R-50 handles harmless, temporary inrush currents and surges by holding an overload five times its rating for a minimum of 10 seconds. This advanced configuration actively eliminates frustrating nuisance tripping during heavy machinery or HVAC system startups while ensuring dependable overcurrent protection when actual faults happen.
Boasting an impressive 200 kAIC interrupting rating at 250 VAC, this current-limiting Fusetron™ fuse cuts off massive fault currents before they can damage downstream infrastructure. By rapidly restricting destructive peak thermal and magnetic energy, it acts as a critical line of defense for your electrical service panelboards, motor control centers, and safety switches.
Measuring a precise 0.81-inch diameter by 3 inches in length with ferrule terminals, this Class RK5 cartridge fuse features a standardized physical footprint. The specialized rejection slot profile prevents the dangerous accidental installation of lower-rated, non-current-limiting Class H or K fuses, ensuring your facility remains strictly code-compliant.
esigned for highly effective selective coordination within the Bussmann RK5 family, a simple 2:1 amp ratio prevents an isolated electrical fault from traveling upstream. This targeted protection isolates overcurrent disruptions strictly to the affected branch circuit, maximizing total plant uptime and safeguarding nearby electronic components from abrupt power interruptions.

Documentation & Downloads

Specifications

Additional

Amperage: 50 A

Interrupting Rating: 20 kAIC at 125 Vdc

Type: Dual element, time-delay

Length: 3 in

Product Width: .81 in

Fuse Indicator: Non-indicating

Product Weight: 3.1 lb

Voltage250 Vac, 125 Vdc

Fuse ClassClass RK5

Response Time10 sec at 500%

ConnectionFerrule end x ferrule end

Product Height.81 in

Number of ElementsDual

ComplianceCE, UL Listed, CSA Certified
