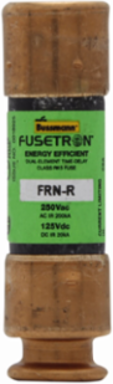

Dual Class RK5 Fuse 2 Amp 250 Vac/125 Vdc Ferrule End Non-Indicating

Dual Class RK5 Fuse 2 Amp 250 Vac/125 Vdc Ferrule End Non-Indicating - https://images.province-electric.com/BUS-FRN-R-2/eaton-bussmann-series-frn-r-medium-alt-snxr.webp

Documentation & Downloads

Bussmann FRN-R-2 Dual Class RK5 Fuse 2 Amp 250 Vac/125 Vdc Ferrule End Non-Indicating

MPN: FRN-R-2
UPC: 051712507141
PPN: BUS-FRN-R-2

CAD

$9.93

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Dual Class RK5 Fuse 2 Amp 250 Vac/125 Vdc Ferrule End Non-Indicating

Features

Engineered with an advanced dual-element design, this fuse provides a minimum 10-second time-delay at 500% of its rated current. This allows it to easily absorb the temporary, harmless inrush currents generated by small motors, pumps, and transformers, preventing unnecessary system shutdowns while still delivering precise overcurrent protection.
Boasting a heavy-duty 250V AC/125V DC rating and a massive 200,000-amp interrupting rating (AIR), this Class RK5 fuse is built to safely contain high-energy faults. Its rejection-style design features a unique grooved end cap that prevents the accidental installation of lower-rated, non-rejection fuses, keeping your facility strictly compliant with NEC® branch circuit requirements.
With a highly accurate 2-Amp continuous current rating, this Fusetron™ device is optimized for protecting sensitive, low-load commercial and industrial components. It is the ideal choice for safeguarding control transformers, solenoids, HVAC equipment loops, and small fractional-horsepower motor circuits from gradual thermal overloads.
Built to standard Class R dimensional specifications (2 in times 9/16 in / 50.8 times 14.3 mm), this cartridge fuse fits seamlessly into any standard 250V, 30A rejection-style fuse block or heavy-duty safety switch. This universal footprint makes it a straightforward, drop-in replacement for upgrading older, non-rejection systems without requiring a complete panel overhaul.

Documentation & Downloads

Specifications

Additional

Amperage: 2 A

Interrupting Rating: 200 kAIC at Vac RMS Sym., 20 kAIC at 125 Vdc

Class: Class RK5

Connection: Ferrule end x ferrule end

Width: .56 in

Fuse Indicator: Non-indicating

Compliance: UL Listed, CSA Certified, CE Marked

Voltage250 Vac, 125 Vdc

Response Time8 sec at 500%

Number of ElementsDual element, time-delay

Length2 in

Height.56 in

Product Weight.5 lb
