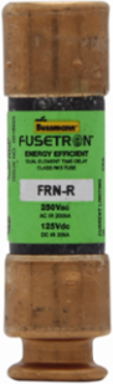

Bussmann FRN-R-25 Dual Class RK5 Non-Indicating Fuse 25 A, 3 Inch x .81 Inch, 20 kAIC at 125 Vdc
- MPN: FRN-R-25
- UPC: 051712507332
- PPN: BUS-FRN-R-25
CAD
$6.95
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Bussmann Dual Class RK5 Non-Indicating Fuse is engineered for high-performance power distribution applications. With an amperage rating of 25 A and a robust interrupt rating of 200 kAIC at 600 Vac or 20 kAIC at 300 Vdc, this fuse ensures reliable protection against overloads and short circuits in various electrical setups. Designed with dual elements and a compact size of 2 inches in length and 0.81 inches in width, it provides efficient current management while fitting seamlessly into your existing systems. The non-indicating feature simplifies installation and maintenance, making this fuse an essential component for safeguarding electrical systems without compromising on functionality.
Features
- The FRN-R-25 is a dual-element, time-delay fuse rated for 25 Amps and 600 Vac (or 300 Vdc). This specific amperage is engineered to handle the everyday demands of small to mid-sized motor loads, ensuring your equipment draws safe power levels without risking circuit overload.
- Featuring a standard Class R rejection slot, this fuse prevents the accidental installation of lower-rated or non-rejection fuses. It ensures physical compatibility with your modern Class R fuse holders and disconnect switches, preventing a potentially dangerous mismatch in your electrical panel.
- The advanced dual-element design provides a temporary time-delay that ignores harmless, momentary current surges caused by motor inrush currents. This eliminates frustrating nuisance tripping while still delivering rapid, pinpoint response times to clear dangerous overloads or short circuits.
- This fuse boasts an exceptional 200 kAIC Interrupting Rating at 600 Vac, offering heavy-duty protection against severe electrical faults. It safely contains high-energy short circuits, protecting your downstream components and personnel from catastrophic equipment failure.
Documentation & Downloads
Specifications
Additional
- Amperage
- 25 A
- Interrupt Rating
- 200 kAIC at 600 Vac; 20 kAIC at 300 Vdc
- Class
- Class RK5
- Width
- 0.81 in
- Connection
- Ferrule end x ferrule end
- Fuse Indicator
- Non-indicating
- Compliance
- CE Marked
Voltage Rating600 Vac, 300 Vdc
Response Time8 sec at 500%
Length2 in
Height0.81 in
Number of ElementsDual
Weight0.05 lb
