Square D 9080LBA361104 Linergy Power Distribution Block 3 Pole 115A Cu 90A Al 600V 2.12 Inch Width
- MPN: 9080LBA361104
- UPC: 785901097433
- PPN: SCH-9080LBA361104
CAD
$62.65
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

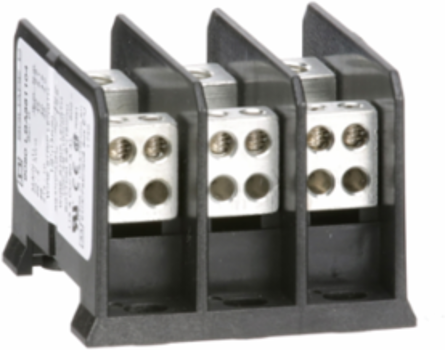

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one 14 to 2 copper or aluminum wire. Each load side lug is rated to accept one 18 to 10 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 115 amperes with copper wire and 90 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Features
- This Linergy power distribution block features a 3-pole miniature design, providing a single 1-line primary input opening and 4-load branch output openings per pole. This layout allows electrical contractors to cleanly split a main three-phase feed into 12 separate downstream circuits from a single space-saving component, eliminating the need for messy multi-wire tapping or jumping.
- Engineered for industrial-grade performance, this block is rated for up to 600V AC/DC and delivers an ampacity of 115A when utilizing copper conductors, or 90A when wired with aluminum. This high capacity protects your panel installations against voltage drops and thermal issues under continuous load, ensuring absolute reliability for commercial and industrial control systems.

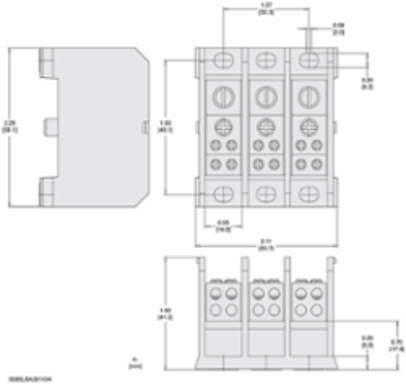

- Measuring just 2.29 inches high, 2.12 inches wide, and 1.62 inches deep, this surface-mount terminal block maximizes panel density by packing multi-circuit distribution into a compact footprint. It allows industrial engineers to reduce overall enclosure sizing requirements or add vital control circuits to existing, tightly packed control cabinets.
- The housing is molded from high-impact thermoplastic capable of withstanding extreme operational temperatures ranging from -40 C to 125 C (-40 F to 257 F). It provides excellent dielectric strength and physical resistance against impacts or high vibrational fatigue, ensuring the structural integrity of your terminations over an extended service life.
- This power distribution block boasts an impressive Short Circuit Current Rating (SCCR) of up to 100 kA under UL 508A, and carries UL Component Recognition, and CSA certification.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth1.62 in
Physical Attributes
- Wire Stripping Length
- line: 0.5 in, load: 0.38 in for top connectionload: 0.63 in for bottom connection
Complementary Attributes
- Line Rated Current
- 115-115 A copper90-90 A aluminium
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Number Of Cables
- line 1 , 14 AWG...2 AWG, copper or aluminium, load 4 , 18 AWG...10 AWG, copper or aluminium
- Connections - Terminals
- line lug 50 lbf.in 3 AWG...2 AWG copper or aluminiumline lug 45 lbf.in 6 AWG...4 AWG copper or aluminiumline lug 40 lbf.in 8 AWG copper or aluminiumline lug 35 lbf.in 12 AWG...10 AWG copper or aluminiumline lug 35 lbf.in 14 AWG copper, load lug 7 lbf.in 18 AWG...10 AWG copper
- Local Publishable Date
- 2026-06-30
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Mounting Support
- surface mount
- Number Of Terminals
- 1 line4 load
- Product Or Component Type
- Miniature Power Distribution Block
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 2.12 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyCE, UL recognized E60616 CCN XCFR2, CSA file 70361 class 6228 01
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Electrical Connectiontin plated aluminium lugs
Materialthermoplastic: block
Number Of Poles3
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Product9080LB
Sustainable PackagingNo
Height Nominal2.29 in
[Ics] Rated Service Breaking Capacity100 kA UL 508 A
Short-circuit Current65 kA
Package Weight(Lbs)99.79 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- 9080LB13
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-40-257 °F, -40-257 °F
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- Miniature Power Distribution Block
Range Of Product9080LB
ETIM
- ETIM 8
- EC002021
ETIM 9EC002021
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
