Documentation & Downloads

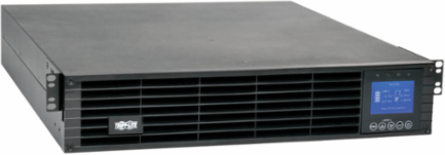

Tripp Lite SUINT2200LCD2U 2200VA Double-Conversion UPS, 9 Outlets, 2U Rackmount, ENERGY STAR-Certified
- MPN: SUINT2200LCD2U
- UPC: 037332183330
- PPN: TRP-SUINT2200LCD2U
CAD
$4129.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
2200VA Double-Conversion UPS, 9 Outlets, 2U Rackmount, ENERGY STAR-Certified
Features
- Offers network-grade protection against power failures and voltage fluctuations
- Zero transfer time between on-line and battery modes for uninterrupted operation
- Optional external battery packs provide additional runtime for applications requiring it
- Optional WEBCARDLX network interface required to use Auto Probe feature
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- 2-year limited warranty
- Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss
- Set Power Strategies to Reflect Your Protection Priorities
- Individually Controllable Load Banks Let You Access and Control Outlets Remotely
- Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
- Automatic Bypass Maintains Utility Output During Fault Conditions
- ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
- Automatically Turns Back On After Power Is Restored
- Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
- Advanced Communications Ports Allow for Automatic Saves and Shutdowns
- Optional WEBCARDLX Network Interface Offers 24/7 Access
- Versatile Installation Options
Documentation & Downloads
Specifications
Additional
- Output Volt Amp Capacity (VA)
- 2200 VA
- Output kW Capacity (kW)
- 1.98 kW
- Input Voltage Range
- 200V to 240V
- Rated Input Current (Maximum Load)
- 10.94 A
- Output AC Waveform (Battery Mode)
- Pure Sine Wave
- Power Factor
- 0.9
- Load Management Receptacles
- Two switchable outlet load banks (Bank 1: 3 C13 outlets; Bank 2: 1 C19 + 3 C13 outlets), plus 2 additional C13 outlets
- Battery Type
- Hot-swappable, replaceable internal battery (RBC48S)
- DC System Voltage
- 48 VDC
- Operating Temperature Range
- 0 to +40 °C (32 to 104 °F)
- Relative Humidity
- 5 to 95%, non-condensing
- Rack Height
- 2U
- Cooling Method
- Fan
- Certifications
- CE; ENERGY STAR Qualified; CSA; EAC; SASO; UL1778
Output Watt Capacity (Watts)1980 W
Output Voltage Range200V to 240V
Input PhaseSingle-Phase
Output Voltage Regulation+/- 2% (Online and Battery Mode), +/- 10% (Economy Mode)
Frequency Compatibility50/60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion, frequency conversion supported
Surge Protection936 Joules
Battery Runtime4.3 minutes at full load (1980W), 11.7 minutes at half load (990W)
Expandable Battery RuntimeSupports optional external battery packs BP48V24-2U, BP48V27-2US, BP48V60RT-3U
Battery Recharge TimeLess than 3 hours from 10% to 90%
Storage Temperature Range-15 to +50 °C (5 to 122 °F)
Dimensions (H x W x D)88 mm x 438 mm x 496 mm (3.46 in x 17.24 in x 19.53 in)
UPS Housing MaterialMetal
Audible Noise<50 dB at front side 1 m
Warranty2-year limited warranty
