nVent Hoffman ED3PBXM Drawn Pushbutton Dome Enclosure 8 Inch x 4 Inch x 3-3/4 Inch, Steel, NEMA 12
- MPN: ED3PBXM
- UPC: 783510130862
- PPN: HOF-ED3PBXM
- UNSPSC: 39121326
CAD
$201.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

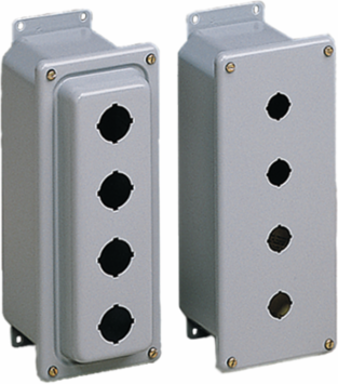

Drawn Pre-cut pushbutton enclosures are great when sharp corners or welds seams need to be eliminated. This Drawn Pushbutton Dome Enclosures Type 4, ED3PBXM item measures 3PBx22.5mm; 8.00x4.00x3.75in. with a material of Steel colored Gray.
Features
- Drawn enclosure
- No welded seams or sharp corners
- Cover screws outside gasket sealing surface
- Flat or domed flanged cover
- Grounding stud on body
- Bonding provision on cover
- Oil-resistant gasket
- External welded-on mounting brackets for easy installation
- Factory stamped 4-way pushbutton holes
- 30.5-mm or 22.5-mm size holes
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 102
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Thickness (T)
- 1.52
- Enclosure Depth (P + V)
- 126
- Hole Quantity
- 3
- Cover Style
- Dome
- Weight
- 3
- Material
- Steel
- Color
- Gray
Height (H)203
Depth (D)95
Product FamilyPushButton
Color CodeANSI 61
NEMA Rating12 Indoor, dust-resistant
Hole Size (HS)22.5
Mounting (G x H)216 x 60
IP RatingIP66
Number of Holes3
Size3PB x 22.5mm
