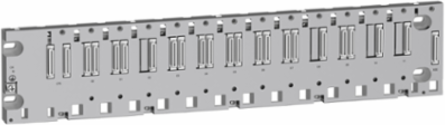

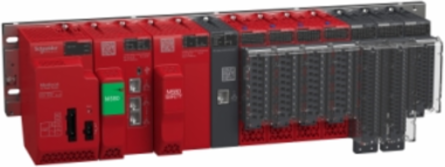

Schneider Electric BMEXBP1200 Modicon X80 Ethernet Backplane Rack, 12 Slots, IP20 Rated

  • MPN: BMEXBP1200
  • PPN: SCH-BMEXBP1200
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1129.43

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 12-slot dual Ethernet and X-bus backplane provides 12 slots with 8 Ethernet and X-bus connectors for mixed modules and 4 X-bus connectors for X-bus modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 164mA at 24V DC and 86mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1500000 hours of MTBF. It is an IP20 rated product. It weighs 1.377kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginUnited States

    Important Information Attributes

    Persona Type IdsEU, OM8, SI
    Fixing Modeby 4 M6 screws plate, by 4 screws 4.32-6.35 mm panel
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.516193125
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]13 kg CO2 eq., 13.4715
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Manufacturing Carbon Footprint13.4715
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Electrical Connection1 connector (XBE) expansion module
    Number Of Slots8 bus X + Ethernet4 bus X
    Product AvailabilityStock - Normally stocked in distribution facility
    ReturnabilityYes
    Sustainable PackagingNo
    Pep CodeENVPEP2203018EN
    Pep Verification Date2022-04-01
    Psr Versionnan
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y15
    Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
    Nbr. Of Units In Pkg.1
    Take-backNo
    Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]13.4715
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]2.5788
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]8.8641
    Customs Code8536908585
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Carbon Footprint Of The Distribution Phase [A4]0.182385, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0134728125, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]202 kg CO2 eq., 201.8267188406
    Local Publishable Date2026-03-25
    Stocking FlagN
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2203018EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2007
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Current Consumption164 mA 24 V DC86 mA 3.3 V DC
    Mtbf Reliability1166108 H
    Power Consumption In W283 mW 3.3 V DC3.9 W 24 V DC
    Range Of ProductModicon X80
    Software VersionEIME v5.9.3
    Total Lifecycle Carbon Footprint216 kg CO2 eq.
    Database Version2020-12
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionX80 Racks are used to install modules in a PLC station (power supply, processor, discrete, analog, and application-specific I/O) during 15 years with a 100% use rate.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Energy model used: France
    Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
    Accessory / Separate Part Typerack
    Package Weight(Lbs)1.405 kg
    Warranty (In Months)18
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]11.9406
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]218.9775
    Water Pollution (M3) Manufacturing [A1-a3]1334.8125

    Environment Attributes Main

    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint216.0102697781
    Circularity ProfileENVEOLI2203018EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2203018EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Product CompatibilityI/O module, specific application module, BMXCPS power supply, BMX processor, BME processor
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation0-60 °C
    Environmental DisclosureENVPEP2203018EN
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticYes
    Relative Humidity5-95 % without condensation
    Pep Verification Date2022-04-01
    Psr Versionnan
