Nvent Hoffman

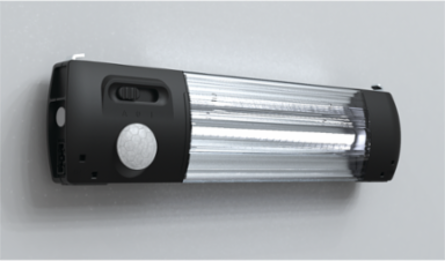

Nvent Hoffman EL1200M24V LED Enclosure Light with Motion Sensor, 1200 lm, 24 VDC, 3 Inch x 12 Inch x 2 Inch

LED Enclosure Light with Motion Sensor, 1200 lm, 24 VDC, 3 Inch x 12 Inch x 2 Inch
  • MPN: EL1200M24V
  • UPC: 783510479015
  • PPN: HOF-EL1200M24V
  • UNSPSC: 39121321

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$522.31/ EA

Description

LED Enclosure Light with quick-install feature allows fitting to the 25mm hole pattern of enclosure profiles. This EL LED Enclosure Light With Motion Sensor, EL1200M24V item has 1200 lm and is rated for 24 VDC.

Features

  • Description: LED enclosure light specially designed for nVent HOFFMAN enclosures. Fast and tool-free assembly thanks to a latching hook system designed to fit the 25mm hole pattern on nVent HOFFMAN enclosures. May be fitted horizontally or vertically.
  • Please be advised that when using the clamp mechanism to mount these lights, they cannot be installed on the top rail of ProLine and ProLine G2 cabinet frames.

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
315
Works With
IEC
Protection Rating
IP20
Finish
Smooth
Lamp Type
LED
Color Temperature
4,000
Power
10
Input Voltage DC
24
Operating Temperature
-20
Weight
0.6
Socket Included
No
Size
2.99 x 12.4 x 1.89 inch
Construction
EL LED Enclosure Light With Motion Sensor, 1200 lm, 24 VDC
Height (H)76
Depth (D)48
Enclosure MaterialPlastic
Product FamilyIEC General Accessories
Socket TypeNA
Light Output1,200
Light ColorNeutral White
Nominal Voltage24
Connection Type2-Pole
On-State Current120
Motion Sensor IncludedYes
MaterialPlastic
ColorBlack
Consist ofLight 1200lm Motion 24VDC
