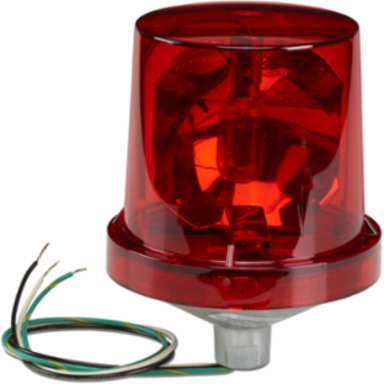

Federal Signal 225-120R Electraray Rotating Incandescent Light, UL and cUL, 120VAC, Red
- MPN: 225-120R
- UPC: 782979390244
- PPN: FDS-225-120R
- UNSPSC: 39111706
CAD
$509.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Electraray® Model 225 is a compact, rotating warning light designed for industrial uses.Model 225 has a closed cell neoprene gasket that makes it water resistant. The injection-molded reflector rotatesaround an LED lamp and produces 90 revolutions per minute. It is available ready to mount on a 1/2-inch NPT pipe. Optional mounting brackets are available, simplifying installation on walls and in corners.Federal Signal's Electraray rotating light is ideal for calling attention to emergency situations or process status changes.
Features
- Available in 120 Vac
- LED lamp
- Integrated 1/2-inch NPT pipe mount
- Indoor/outdoor use
- Type 4X, IP66 enclosure
- IP69K Compliant
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 7.25 in
- Body Color
- Silver
- Certification Listing
- UL, cUL
- Flash Pattern Type
- 1x Flash
- Availability
- In Stock - Ships in 2 Bus Days
- Mount Type
- 1/2-Inch NPT Pipe
- Operating Temp.
- -31˚ to +150˚F (-35˚ to +66˚C)
- Visual Signals Lens Color
- Red
- Enclosure Rating
- IP66, IP69K, Type 4X
- Product Life Cycle Status
- Completed
Length7.25 in
Weight2 lbs
Candela Power Peak2000
Diameter5.5 in (139.7 mm)
Flashes Per Minute90
Lens ColorRed
Operating Current Amps0.2
Operating Voltage120 Vac
Environmental RatingOrdinary Location
Lead TimeIn Stock - Ships in 2 Bus Days
